Product Details:
Payment & Shipping Terms:
|
Voltage: | 33-37V | Current: | 2800mA |
---|---|---|---|
Power: | 100W *2 | CCT: | 2700K-7000K |
Efficiency: | 105lm/W | CRI: | 95Ra |
COB Base: | CU | LES: | Φ21mm |
Highlight: | cob smd led,high power cob led |

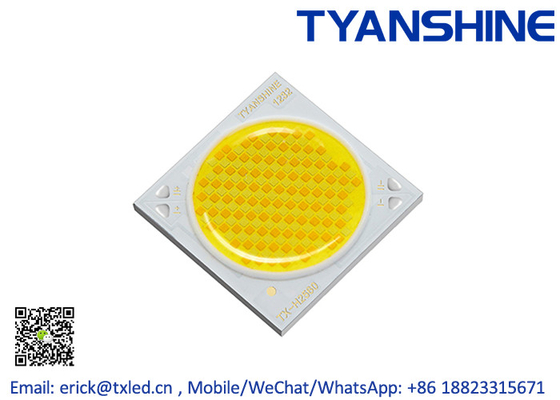

Studio Light COB LED 100Watt 2700K-7000K Tunable White 95CRI
Features:
Advantages VS Disadvantages:
TYANSHINE Tuneable White COB | Other Brands' Tuneable COB |
![]() |
![]() |
1, Cross-distribution for the White and WarmWhite LED Dies;
2, Better performance of Color-mixing, without light strips or shadows;
3, Easy to adapt Lenses or reflectors
|
1, Strip arrays or Circular distribution of LED Dies;
2, Ununiformity of color-mixing, will be projected light strips or shadows;
3, Strictly requirements for Lenses/Relfectors |
Specification:
Item Code | Color | IF (mA) |
VF (V) |
Power (W) |
CCT (K) | CRI (Ra) |
Lumen (lm) |
LES (mm) |
TX-H2560SW21C-2770V36-03H95 | W | 2800 | 33-37 | 100 | 7000 | 95 | 6300 | Φ21 |
S | 2800 | 33-33 | 100 | 2700 | 4450 |
(W - White, S - WarmWhite) , Ta = 25℃
Housing / Lens / Holder Competitable with:
![]() |
![]() |
![]() |
![]() |
TX-1308 | XLamp CXA 1304-1310 | CLL022 | - |
TX-1512 | XLamp CXA 1507-1512 | - | - |
TX-1824 | XLamp CXA 1820-1830 | CLL032 |
Tiger Zenigata |
TX-2548 | XLamp CXA 2530-2540 | - | - |
Drawings:
Applications:
Commercial lighting / Residential lighting / Smart lighting
spot lights,down lights, ceiling lights,bulb lights or tracking lights ...
Photography lighting Fresnels lights
