Stage Spot Lighting Ceramic SMD6070 LED 50W RGBLAC Light LED Source

Large Image : Stage Spot Lighting Ceramic SMD6070 LED 50W RGBLAC Light LED Source

Product Details:

Place of Origin:	CN
Brand Name:	TYANSHINE
Certification:	ISO9001:2008 SGS RoHS
Model Number:	TX-6070RGBLLAC50FC120-NUVENG-02

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	negotiation
Packaging Details:	In Tray
Delivery Time:	5-10 days
Payment Terms:	T/T
Supply Ability:	10,000pcs/week

Contact Now

Detailed Product Description

Colour:	RGBWS/ RGBLAC / RGBLACP/RGBWLAP	Power:	50W
PKG:	SMD6070	Substrate:	Ceramic
Current:	2500mA	Certification:	RoHS / Reach
Highlight:	white led module , white led chip

Stage Spot Lighting Ceramic SMD6070 LED 50W RGBLAC Light LED Source

Stage Spot Lighting SMD6070 LED 50W RGBLAC Light LED Source

Features:

1, SMD5050 PKG with 6Colours RGBLAC, High power density

2, Full Spectrum, with color gamut

3, High CRI 95+ during CCT mixing 2000K - 10000k

4, Ceramic substrate, fast heat conductivity

5, Well-mixed distribution of RGBLAC LED chips, perfect colour-mixing

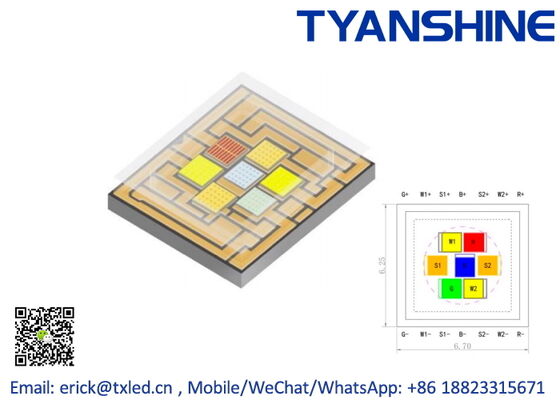

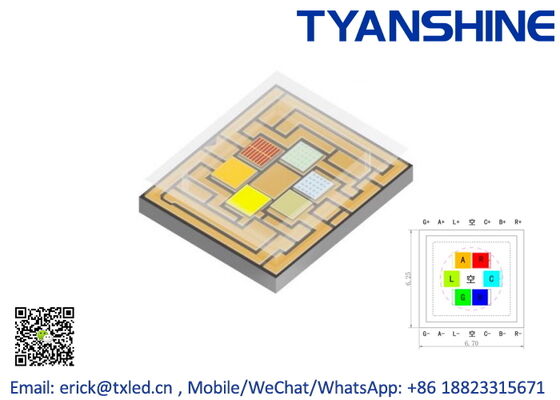

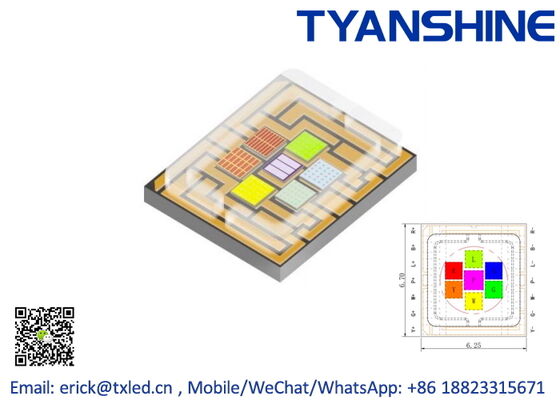

Dimensions:

Specifications:

SMD6070 LED, RGBLAC+UV 50Watt

Color	Vf (V)	Max. If (mA)	λd(nm) CCT(K)	φv(lm) IF=1000mA	CRI
Red	2.0-2.6V	2500mA	620-625nm	105-140lm	/
Green	2.8-3.6V	2500mA	525-532nm	220-325lm	/
Royal Blue	2.8-3.6V	2500mA	448-458nm	40-55lm	/
Cyan	2.8-3.6V	2500mA	485-495nm	135-170lm	/
Lime	2.8-3.6V	2500mA	4250-4500K	320-450lm	/
PC-Amber	2.8-3.6V	2500mA	1750-1830K	160-260lm	/
UV	3.0-3.8V	1000mA	390-400nm	350-480lm	/

SMD6070 LED, RGBLLAC 50Watt

Color	Vf (V)	Max. If (mA)	λd(nm) CCT(K)	φv(lm) IF=1000mA	CRI
Red	2.0-2.6V	2500mA	620-625nm	105-140lm	/
Green	2.8-3.6V	2500mA	525-532nm	220-325lm	/
Royal Blue	2.8-3.6V	2500mA	448-458nm	40-55lm	/
Cyan	2.8-3.6V	2500mA	485-495nm	135-170lm	/
Lime	2.8-3.6V	2500mA	4250-4500K	320-450lm	/
PC-Amber	2.8-3.6V	2500mA	1750-1830K	160-260lm	/
