Highlight: | led light module,led lighting engine |
---|

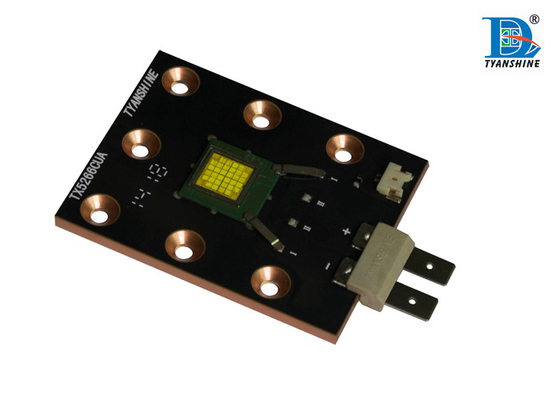

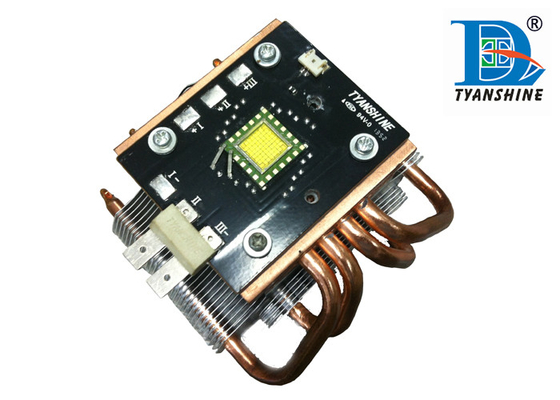

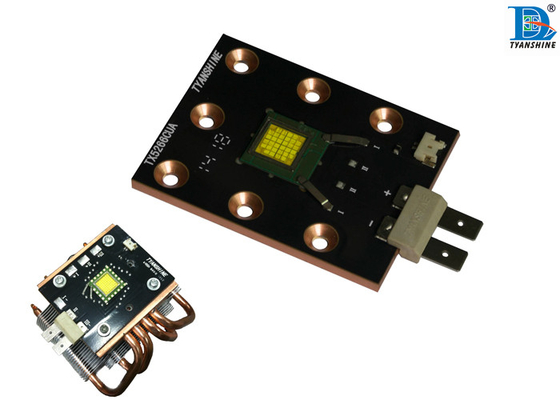

200W - 300W High Brightness LED Light Engine White Color 6500 - 9500K
High Brightness LED Light Engines White Color 200W-300W
Features:
1, Small LES, 5W/mm² ;
2, Eutectic packages technique, fast heat-conductivity;
3, Special Parallel and Serial connection,1/4 current for the same power compared with the similar product in the market ;
4, Average efficiency upto 40lm/W @Tj=85℃ with full power;
5, Excellent effect of color-mixing for 3Colors or 4Colors LEDs light source;
6, Quick on/off; Anti-poisonous or toxic, comply with RoHS
Specifications:
Code | Color | Vf (V) | If (A) | CCT(K) | φv(lm) | Power | LES(mm) |
TX-5266W250FC120-NUVENG-A01 | White | 12-16 | 18 | 6500-9500 | 10000-12500 | 250 | 9 x 9 Φ11 |
Applications:
Entertainment lighting, Projection lights, Moving-Heads, SPOT, GOBO
Architectural lighting
Medical lighting
Event lighting
Stage lighting Projection
