Ceramic SMD5050 LED Multi-colour RGBLAC LED 10W Dome Lens RGBWAC 20W LED

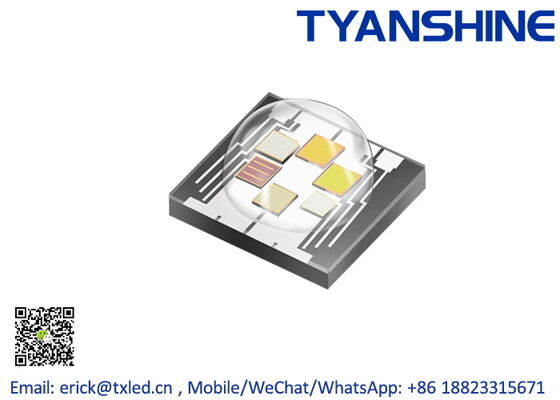

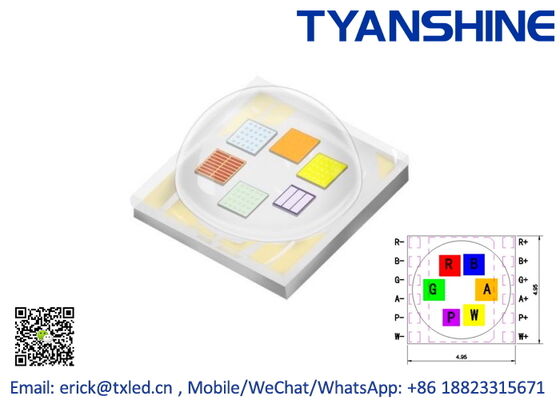

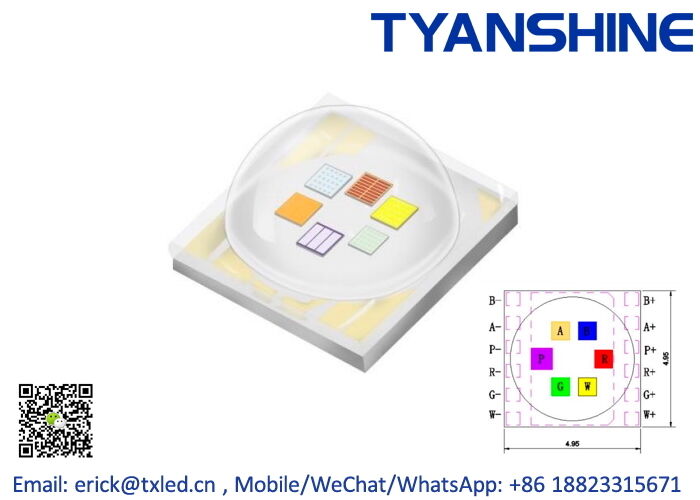

Large Image : Ceramic SMD5050 LED Multi-colour RGBLAC LED 10W Dome Lens RGBWAC 20W LED

Product Details:

Place of Origin:	CN
Brand Name:	TYANSHINE
Certification:	ISO9001, ISO14001
Model Number:	TX-5050

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	In Reel
Delivery Time:	5-10 days
Payment Terms:	ExW, FOB, CIF
Supply Ability:	100000PCS/month

Contact Now

Detailed Product Description

Power:	10W / 20W	Colour:	RGBACL/RGBWAC/RGBWAP/ RGBLAP
Size:	SMD5050	Substrate:	Ceramic
Lens Type:	Dome	Certification:	RoHS REACH
Highlight:	smd led diode , 3535 smd led

Ceramic SMD5050 LED Multi-colour RGBLAC LED 10W Dome Lens RGBWAC 20W LED

Features:

Compact Ceramic SMD5050 LEDs, multi-colour 6in1 / 5in1
Lower thermal resistance, higher light efficiency
Ceramic base with good heat conductivity to enlarge the lifespan
Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
Various colour options: RGBACL, RGBWAC / RGBLAP / RGBWAP
Low expansion coefficient, high air tightness

Specifications:

10Watt SMD5050 LED 6IN1 Multi-color

Multi-colour	Color	Max.I_F (mA)	V_F(V)	λd (nm) CCT (°K)	Lumen(lm) If=350mA	CRI
RGBWAP 10Watt	R	800	2.0-2.8	620-625nm	45-75	/
	G	800	2.8-3.4	522-532nm	90-135	/
	B	800	2.8-3.4	450-460nm	15-30	/
	W	800	2.8-3.4	6000-7000K	105-135	70
	A	800	2.8-3.4	1780-1950K (587-590nm)	55-80	/
	Purple	600	3.0-3.6	430-440nm	1-2	/

Multi-colour	Color	Max.I_F (mA)	V_F(V)	λd (nm) CCT (°K)	Lumen(lm) If=350mA	CRI
RGBWYP 10Watt	R	800	2.0-2.8	620-625nm	45-75	/
	G	800	2.8-3.4	522-532nm	90-135	/
	B	800	2.8-3.4	450-460nm	15-30	/
	W	800	2.8-3.4	6000-7000K	105-135	70
	Yellow	600	2.8-3.4	589-596nm	58-75	/
	Purple	600	3.0-3.6	430-440nm	1-2	/

Multi-colour	Color	Max.I_F (mA)	V_F(V)	λd (nm) CCT (°K)	Lumen(lm) If=350mA	CRI
RGBWAC 10Watt	R	800	2.0-2.8	620-625nm	45-75	/
	G	800	2.8-3.4	522-532nm	90-135	/
	B	800	2.8-3.4	450-460nm	15-30	/
	W	800	2.8-3.4	6000-7000K	105-135	70
	A	800	2.8-3.4	1780-1950K (587-590nm)	55-80	/
	Cyan	700	2.9-3.5-3.6	490-495nm	40-60	/

Multi-colour	Color	Max.I_F (mA)	V_F(V)	λd (nm) CCT (°K)	Lumen(lm) If=350mA	CRI
RGBLAC 10Watt	R	800	2.0-2.8	620-625nm	45-75	/
	G	800	2.8-3.4	522-532nm	90-135	/
	B	800	2.8-3.4	450-460nm	15-30	/
	L	800	2.8-3.4	5400-5900K (549-552nm)	135-170	70
	A	800	2.8-3.4	1780-1950K (587-590nm)	55-80	/
	Cyan	700	2.9-3.5	490-495nm	40-60	/

20Watt SMD5050 LED 6IN1 Multi-color

Multi-colour	Color	Max.I_F (mA)	V_F(V)	λd (nm) CCT (°K)	Lumen(lm) If=700mA	CRI
RGBWAP 20Watt	R	1000	2.0-2.6	620-625nm	100-145	/
	G	1200	2.9-3.6	522-532nm	170-230	/
	B	1200	2.9-3.6	450-460nm	30-45	/
	W	1200	2.9-3.6	6000-7000K	185-280	70
	A	1200	2.9-3.6	1780-1950K (587-590nm)	120-185	/
	Purple	600	3.2-3.9	435-445nm	4-5	/

Multi-colour	Color	Max.I_F (mA)	V_F(V)	λd (nm) CCT (°K)	Lumen(lm) If=700mA	CRI
RGBLYP 20Watt	R	1000	2.0-2.6	620-625nm	100-145	/
	G	1200	2.9-3.6	522-532nm	170-230	/
	B	1200	2.9-3.6	450-460nm	30-45	/
	L	1200	2.8-3.6	5000-5250K (556-560nm)	290-360	/
	Yellow	800	2.3-3.0	587-597nm	120-185	/
	Purple	600	3.2-3.9	433-443nm	1.5-2.5	/

Multi-colour	Color	Max.I_F (mA)	V_F(V)	λd (nm) CCT (°K)	Lumen(lm) If=700mA	CRI
RGBLAP 20Watt	R	1000	2.0-2.6	620-625nm	100-145	/
	G	1200	2.9-3.6	522-532nm	170-230	/
	B	1200	2.9-3.6	450-460nm	30-45	/
	L	1200	2.8-3.6	5000-5250K (556-560nm)	310-380	/
	A	1200	2.9-3.6	1750-1950K (587-597nm)	195-245	/
	Purple	600	3.2-3.9	435-445nm	1.5-2.5	/

Multi-colour	Color	Max.I_F (mA)	V_F(V)	λd (nm) CCT (°K)	Lumen(lm) If=700mA	CRI
RGBLAC 20Watt	R	1000	2.0-2.6	620-625nm	100-145	/
	G	1200	2.9-3.6	522-532nm	170-230	/
	B	1200	2.9-3.6	450-460nm	30-45	/
	L	1200	2.8-3.6	5000-5250K (556-560nm)	200-260	/
	A	1200	2.9-3.6	1750-1950K (587-597nm)	150-195	/
	Cyan	700	2.9-3.6	485-492nm	65-80	/
