Ceramic SMD5060 LED RGBW 15W 20W 40W 50W 60W RGBL Multichip LEDs

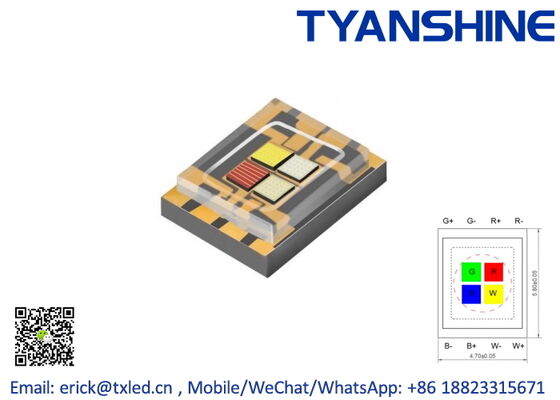

Large Image : Ceramic SMD5060 LED RGBW 15W 20W 40W 50W 60W RGBL Multichip LEDs

Product Details:

Place of Origin:	CN
Brand Name:	TYANSHINE
Certification:	ISO9001:2008 SGS RoHS
Model Number:	TX-5060

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	In Reel
Delivery Time:	5-10 days
Payment Terms:	ExW, FOB, CIF
Supply Ability:	100000PCS/month

Contact Now

Detailed Product Description

Power:	15W 20W 40W 50W 60W	Colour:	RGBW/ RGBL / RGBA
Size:	SMD5060	Substrate:	Ceramic
Certification:	RoHS, REACH
Highlight:	smd led chip , smd led diode

Ceramic SMD5060 LED RGBW 15W 20W 40W 50W 60W RGBL Multichip LEDs

Ceramic SMD5060 LED RGBW 15W 20W 40W 50W 60W RGBL Multichip LEDs

Features:

SMD5060 Ceramic LED Package, similar to Ostar Stage;
Lower thermal resistance, higher light efficiency
Ceramic base with good heat conductivity to enlarge the lifespan
Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
Various optios of color mixtures, different power output
Low expansion coefficient, high air tightness

Specifications:

SMD5060 LED 15W RGBW, RGBWW

Item Code	Color	Max.I_F (mA)	V_F(V)	λd (nm) CCT (°K)	Lumen(lm) If=750mA	CRI
RGBW RGBWW	R	1000	2.0-2.8	620-630	75-105	/
	G	1500	2.8-3.6	520-530	160-210	/
	B	1500	2.8-3.6	450-460	25-40	/
	W	1500	2.8-3.6	6500K±500K	200-255	70
	WW	1500	2.8-3.6	3000K±150K	150-180	70

SMD5060 LED 20W RGBW, RGBWW, RGBL, RGBA

Item Code	Color	Max.I_F (mA)	V_F(V)	λd (nm) CCT (°K)	Lumen(lm) If=1000mA	CRI
RGBW RGBWW	R	2000	2.0-2.8	620-630	75-105	/
	G	1800	2.8-3.6	520-530	160-210	/
	Royal Blue	1800	2.8-3.6	450-460	25-40	/
	Light Blue	1800	2.8-3.6	465-475	55-70	/
	W	1800	2.8-3.6	6500K±500K	260-300	80
	NW			4000K±300K	260-300
	WW			3000K±150K	215-250
	WW			2700K±80K	215-250

Item Code	Color	Max.I_F (mA)	V_F(V)	λd (nm) CCT (°K)	Lumen(lm) If=1000mA	CRI
RGBA RGBL	R	2000	2.0-2.8	620-630	75-105	/
	G	1800	2.8-3.6	520-530	160-210	/
	Royal Blue	1800	2.8-3.6	450-460	25-40	/
	Light Blue	1800	2.8-3.6	465-475	55-70	/
	A	1800	2.8-3.6	1770-1850K	150-180	/
	L	1800	2.8-3.6	4250-4500K	300-350	/

SMD5060 LED 40W RGBW, RGBWW, RGBL, RGBA

Item Code	Color	Max.I_F (mA)	V_F(V)	λd (nm) CCT (°K)	Lumen(lm) If=1000mA	CRI
RGBW RGBWW RGBA RGBL	R	2500	2.0-2.8	620-625	100-140	/
	G	3000	2.9-3.8	520-530	250-350	/
	Royal Blue	3000	2.9-3.8	450-460	40-50	/
	W	2500	2.8-3.6	6000-7500K	260-300	70
	WW	2500		3000K±150K	260-300	80
	A	2500		1770-1850K	170-200	/
	L	2000		4020-42880K	210-390	/

SMD5060 LED 50W RGBW, RGBL

Item Code	Color	Max.I_F (mA)	V_F(V)	λd (nm) CCT (°K)	Lumen(lm) If=1000mA	CRI
RGBW RGBL	R	3500	2.0-2.6	622-627	105-145	/
	G	4500	2.9-3.5	526-532	250-350	/
	Royal Blue	4500	2.9-3.5	447-453	35-45	/
	W	4000	2.9-3.5	6000-7000K	370-430	70
	L	4500	2.9-3.5	4020-42880K	350-450	/

SMD5060 LED 60W RGBW, RGBL

Item Code	Color	Max.I_F (mA)	V_F(V)	λd (nm) CCT (°K)	Lumen(lm) If=1000mA	CRI
RGBW RGBL	R	3500	2.0-2.6	622-627	120-150	/
	G	4500	2.9-3.5	526-532	295-345	/
	Royal Blue	4500	2.9-3.5	447-453	45-58	/
	W	4000	2.8-3.5	6000-7000K	370-430	70
	L	4500	2.8-3.5	4020-42880K	350-450	/
