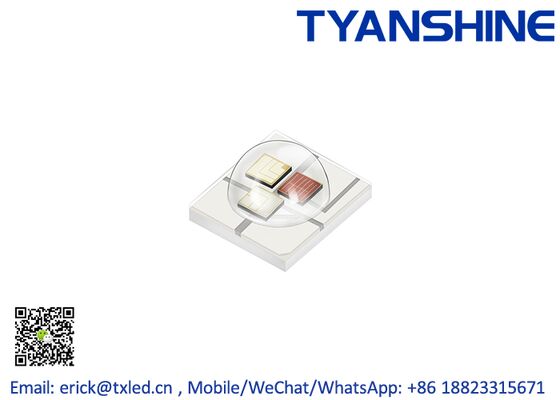

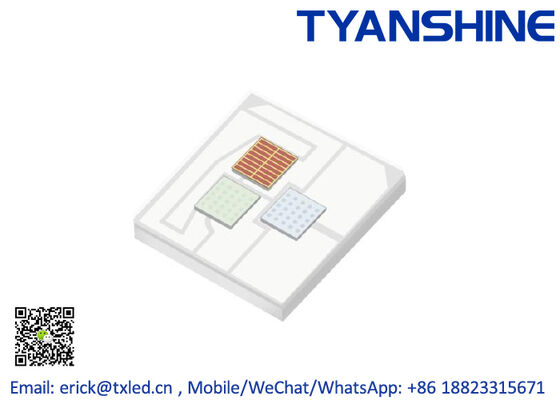

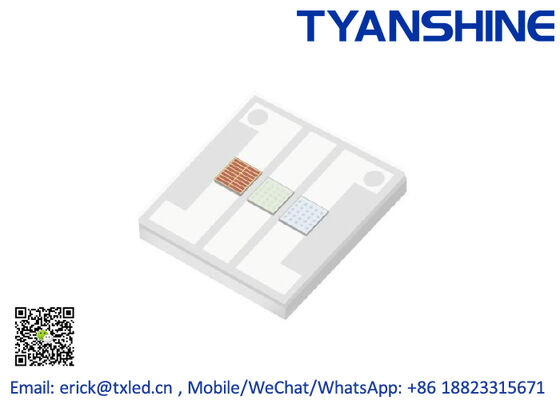

Ceramic SMD3535 LEDs RGB 1W 3W 4W 9W 3-in-1 SMD LED Components

Large Image : Ceramic SMD3535 LEDs RGB 1W 3W 4W 9W 3-in-1 SMD LED Components

Product Details:

Place of Origin:	CN
Brand Name:	TYANSHINE
Certification:	ISO9001:2008 SGS RoHS
Model Number:	TX-3535RGB

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	In Reel
Delivery Time:	5-10 days
Payment Terms:	ExW, FOB, CIF
Supply Ability:	100000PCS/month

Contact Now

Detailed Product Description

Colour:	RGB	Lens:	Dome / Flat
Power:	1W 2W 3W 4W	Package Size:	SMD3535
Substrate:	Ceramic	Certification:	RoHS REACH IEC62471
Highlight:	smd led chip , 3535 smd led

Ceramic SMD3535 LEDs RGB 1W 3W 4W 3-in-1 SMD LED Components

Features:

Small size
Lower thermal resistance, higher light efficiency
Ceramic base with good heat conductivity to enlarge the lifespan
Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
SMD Components suitable for reflow-solidering,
Low expansion coefficient, high air tightness

Specifications:

Code	Color	Power	If (mA)	Dominant Wavelength	φv(lm)	Lens Type
TX-3535RGB1FC120-OGHCND34-01	RGB	1W	160mA	R 615-625nm G 517-530nm B 458-470nm	R 22-35lm G 25-45lm B 10-15lm	Dome
TX-3535RGB3FC120-OGVCND34-03	RGB	3W	350mA	R 615-625nm G 517-530nm B 458-470nm	R 50-70lm G 60-85lm B 20-30lm	Dome
TX-3535RGB4VCC1-0G4DB-01	RGB	4W	500mA	R 618-628nm G 522-532nm B 449-457nm	R 60-75lm G 90-115lm B 13-18lm	Dome
TX-3535RGB4VCC1-0G4DB-01	RGB	4W	500mA	R 618-628nm G 522-532nm B 465-475nm	R 60-75lm G 90-115lm B 28-38lm	Dome
TX-3535RGB9VCC1-NG4DB-01	RGB	9W	R 1000mA G/B 1200mA	R 616-626nm G 521-531nm B 465-470nm	R 125-145lm G 190-220lm B 50-60lm	Dome
						Dome

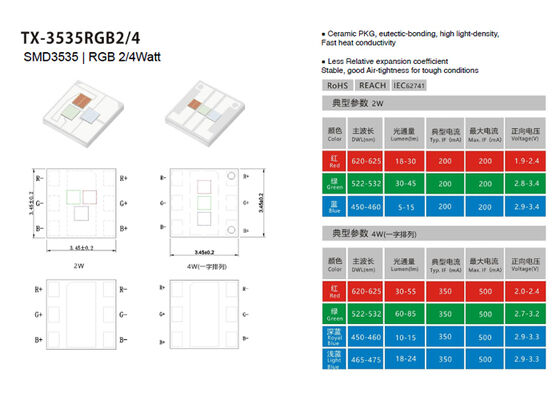

TX-3535RGB2FC180-OGVCND34-01	RGB	2W	200mA	R 616-626nm G 523-535nm B 456-468nm	R 16-28lm G 25-40lm B 5-10lm	Flat
TX-3535RGB4FC180-OGVCND34-02L	RGB	4W	400mA	R 618-628nm G 522-535nm B 456-465nm	R 25-55lm G 55-85lm B 12-25lm	Flat
