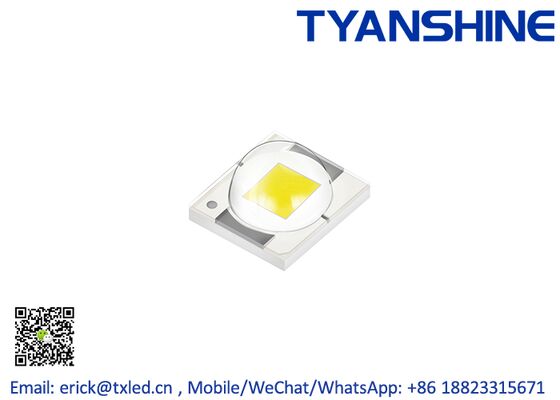

Ceramic SMD3535 LEDs CRI 90 White 2200K 3000K 4000K 5000K 6500K XP-G LED CRI80

Large Image : Ceramic SMD3535 LEDs CRI 90 White 2200K 3000K 4000K 5000K 6500K XP-G LED CRI80

Product Details:

Place of Origin:	CN
Brand Name:	TYANSHINE
Certification:	ISO9001:2008 SGS RoHS
Model Number:	TX-3535W5FSA1-0G4DB-01

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	In Reel
Delivery Time:	5-10 days
Payment Terms:	ExW, FOB, CIF
Supply Ability:	100000PCS/month

Contact Now

Detailed Product Description

Color:	White	CCT:	2200K 2700K 3000K 4000K 5000K 6500K
CRI:	80Ra / 90Ra	Package Size:	SMD3535
Substrate:	Ceramic	Certification:	RoHS REACH IEC62471
Highlight:	smd led chip , smd led diode

Ceramic SMD3535 LEDs CRI 90 White 3000K 4000K 5000K 6500K XP-G LED CRI80

Features:

Small size
Lower thermal resistance, higher light efficiency
Ceramic base with good heat conductivity to enlarge the lifespan
Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
SMD Components suitable for reflow-solidering,
Low expansion coefficient, high air tightness

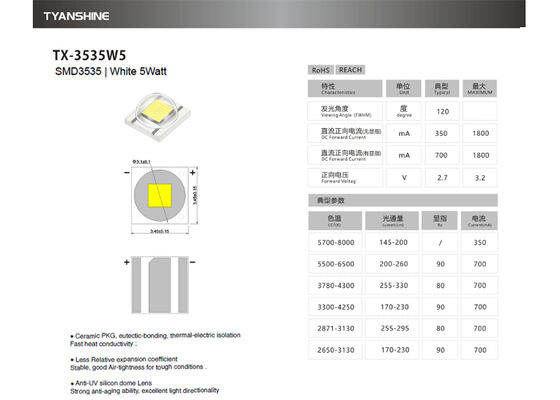

Specifications:

Code	Color	Vf (V)	Max. If (mA)	CCT(K)	φv(lm) IF=700mA	CRI
TX-3535W5FSA1-0G4DB-01	White	2.7-3.2V	1800mA	5300-6400K	280-400lm	70
TX-3535W5FSA1-0G4DB-01H80	White	2.7-3.2V	1800mA	4000K±300K	255-330lm	80
TX-3535W5FSA1-0G4DB-01H80	White	2.7-3.2V	1800mA	3500K±150K	230-300lm	80
TX-3535W5FSA1-0G4DB-01H80	White	2.7-3.2V	1800mA	3000K±150K	200-260lm	80
TX-3535W5FSA1-0G4DB-01H90	White	2.7-3.2V	1800mA	5500-6800K	230-270lm	90
TX-3535W5FSA1-0G4DB-01H90	White	2.7-3.2V	1800mA	4000K±300K	210-250lm	90
TX-3535W5FSA1-0G4DB-01H90	WarmWhite	2.7-3.2V	1800mA	3000K±150K	195-230lm	90
