Ceramic SMD6065 LED RGBW 60Watt RGBL 4IN1 LED TunableWhite CRI80 LEDs

Large Image : Ceramic SMD6065 LED RGBW 60Watt RGBL 4IN1 LED TunableWhite CRI80 LEDs

Product Details:

Place of Origin:	CN
Brand Name:	TYANSHINE
Certification:	ISO9001:2008 SGS RoHS
Model Number:	TX-6065

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	In Reel
Delivery Time:	5-10 days
Payment Terms:	ExW, FOB, CIF
Supply Ability:	100000PCS/month

Contact Now

Detailed Product Description

Power:	60W	Voltage:	3V
Current:	5000mA	Size:	SMD6065
Substrate:	Ceramic	Colour:	RGBW/RGBL/RGBA/TunableWhite
Highlight:	smd led chip , smd led diode

Ceramic SMD6065 LED RGBW 60Watt RGBL 4IN1 LED TunableWhite CRI80 LEDs

Ceramic SMD6065 LED RGBW 60Watt RGBL 4IN1 LED TunableWhite CRI80 LEDs

Features:

Small size, powerful LEDs
Lower thermal resistance, higher light efficiency
Ceramic base with good heat conductivity to enlarge the lifespan
Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
SMD Components suitable for reflow-solidering,
Low expansion coefficient, high air tightness

Specifications:

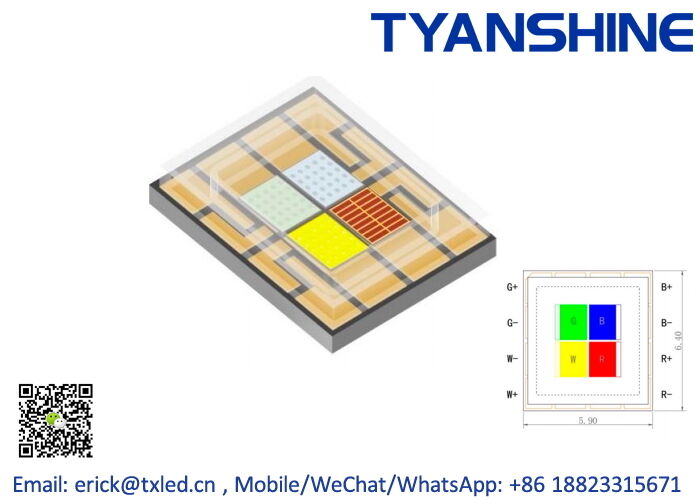

SMD6065 LED RGBW / RGBL

Item Code	Color	Max. I_F (mA)	V_F (V)	λd (nm) CCT (°K)	Lumen(lm) If=1000mA	LES (mm)
RGBW 6500K	R	5000	2.4-3.2	622-627	120-145	/
	G	5000	2.8-3.8	522-532	35-55	/
	B	5000	2.8-3.8	449-455	40-50	/
	W	5000	2.8-3.8	6500K±500K	380-480	70

Item Code	Color	Max. I_F (mA)	V_F (V)	λd (nm) CCT (°K)	Lumen(lm) If=1000mA	LES (mm)
RGBL	R	5000	2.4-3.2	622-627	120-145	/
	G	5000	2.8-3.8	522-532	35-55	/
	B	5000	2.8-3.8	449-455	40-50	/
	L	5000	2.8-3.8	4250-4500K	380-480	/

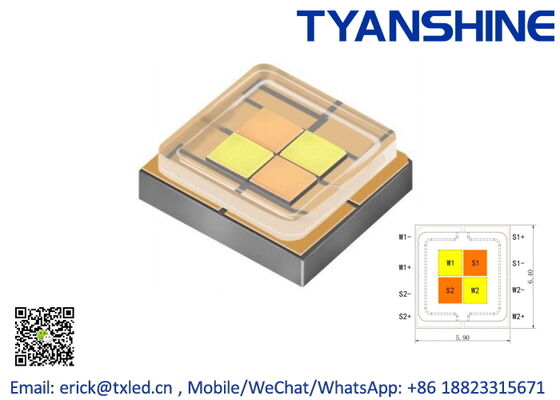

SMD6065 LED TunableWhite

Item Code	Color	Max. I_F (mA)	V_F (V)	CCT (°K)	Lumen(lm) If=1000mA	LES (mm)
TunableWhite	W1	4500	2.9-3.5	5800-6900K	350-400	80
	W2	4500	2.9-3.5	5800-6900K	350-400	80
	S1	4500	2.9-3.5	2590-2840K	300-350	80
	S2	4500	2.9-3.5	2590-2840K	300-350	80

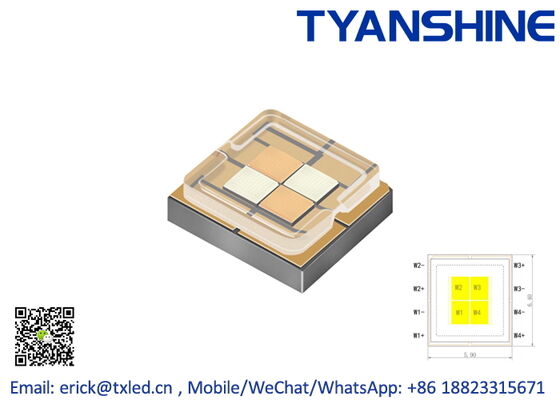

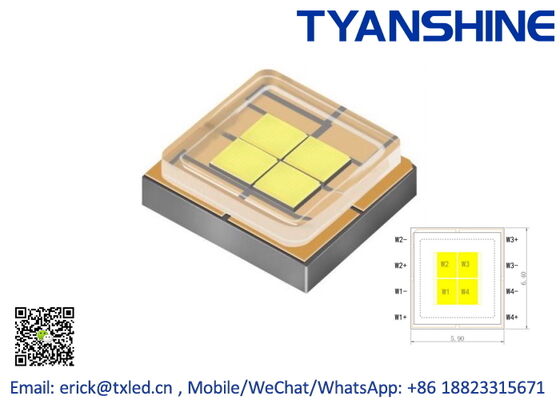

SMD6065 LED White

Item Code	Color	Max. I_F (mA)	V_F (V)	CCT (°K)	Lumen(lm) If=1000mA	LES (mm)
Cool White	W1	5000	2.9-3.5	5600-6900K	390-490	80
	W2	5000	2.9-3.5	5600-6900K	390-490	80
	W3	5000	2.9-3.5	5600-6900K	390-490	80
	W4	5000	2.9-3.5	5600-6900K	390-490	80
