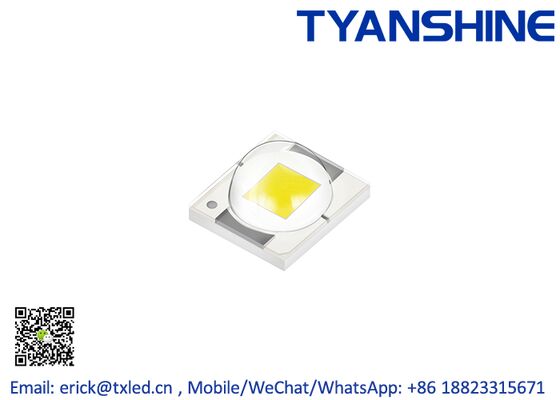

Ceramic SMD3535 LED 10Watt Red Green Blue White PC-Amber Lime Cyan XPG LED 2500mA

Large Image : Ceramic SMD3535 LED 10Watt Red Green Blue White PC-Amber Lime Cyan XPG LED 2500mA

Product Details:

Place of Origin:	CN
Brand Name:	TYANSHINE
Certification:	ISO9001:2008 SGS RoHS
Model Number:	TX-3535

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	In Reel
Delivery Time:	5-10 days
Payment Terms:	ExW, FOB, CIF
Supply Ability:	100000PCS/month

Contact Now

Detailed Product Description

Color:	R/G/B/C/A/L/M/W	Power:	10W
Current:	2500mA	PackageSize:	SMD3535
Substrate:	Ceramic	Certification:	RoHS REACH IEC62471
Highlight:	smd led chip , smd led diode

Ceramic SMD3535 LED 10Watt Red Green Blue White PC-Amber Lime Cyan XPG LED 2500mA

Features:

Small size
Lower thermal resistance, higher light efficiency
Ceramic base with good heat conductivity to enlarge the lifespan
Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
SMD Components suitable for reflow-solidering,
Low expansion coefficient, high air tightness

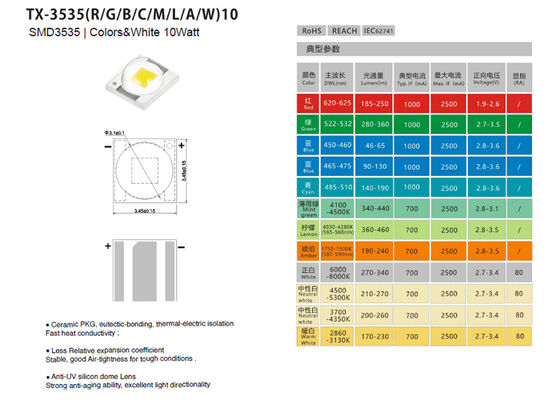

Specifications:

Ceramic SMD3535 LED 10Watt Red Green Blue White PC-Amber Lime Cyan XPG LED 2500mA

Color	Vf (V)	Max. If (mA)	λd(nm) CCT(K)	φv(lm)	CRI

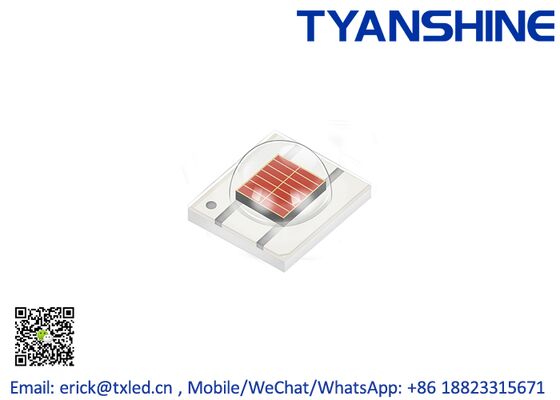

Red	1.9-2.6V	2500mA	620-625nm	185-250lm
Green	2.7-3.5V	2500mA	522-532nm	280-360lm
Royal Blue	2.8-3.6V	2500mA	450-460nm	46-65lm
Light Blue	2.8-3.6V	2500mA	465-475nm	90-130lm
Cyan	2.8-3.6V	2500mA	485-510nm	140-190lm
Mint	2.8-3.1V	2500mA	4100-4500K	340-440lm
Lime	2.8-3.5V	2500mA	4030-4280K (565-568nm)	360-460lm
PC-Amber	2.8-3.5V	2500mA	1750-1900K (587-590nm)	190-240lm
Cool White	2.7-3.4V	2500mA	6000-8000K	270-340lm	80
White	2.7-3.4V	2500mA	4500-5300K	210-270lm	80
Neutral White	2.7-3.4V	2500mA	3700-4350K	200-260lm	80
Warm White	2.7-3.4V	2500mA	2860-3130K	170-230nm	80

Package Dimensions:

Ceramic SMD3535 LED 10Watt Red Green Blue White PC-Amber Lime Cyan XPG LED 2500mA

Applications:

LED Flashlight

Automobile Illumination
Architectural lighting

Landscape lighting

LED Street Light, LED High Bay Lights, LED Tunnel Lights

Secruity application CCTV products

Ceramic SMD3535 LED 10Watt Red Green Blue White PC-Amber Lime Cyan XPG LED 2500mA
