Ceramic SMD5050 LED Multi-colour RGBLAC LED 10W Flat Lens RGBWW 20W LED

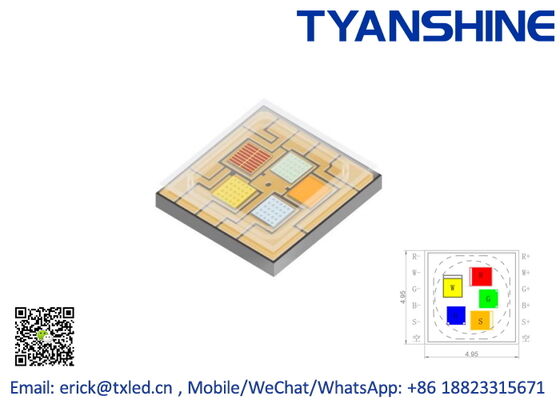

Large Image : Ceramic SMD5050 LED Multi-colour RGBLAC LED 10W Flat Lens RGBWW 20W LED

Product Details:

Place of Origin:	CN
Brand Name:	TYANSHINE
Certification:	ISO9001:2008 SGS RoHS
Model Number:	TX-5050 Series

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	In Reel
Delivery Time:	5-10 days
Payment Terms:	ExW, FOB, CIF
Supply Ability:	100000PCS/month

Contact Now

Detailed Product Description

Power:	10W / 20W	Colour:	RGBLAC/RGBLAP/RGBWW
Size:	SMD5050	Substrate:	Ceramic
Lens Type:	Flat	Certification:	RoHS. REACH
Highlight:	smd led chip , smd led diode

Ceramic SMD5050 LED Multi-colour RGBLAC LED 10W Flat Lens RGBWW 20W LED

Ceramic SMD5050 LED Multi-colour RGBLAC LED 10W Flat Lens RGBWW 20W LED

Features:

Copmact Ceramic SMD5050 LEDs,
Lower thermal resistance, higher light efficiency
Ceramic base with good heat conductivity to enlarge the lifespan
Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
Various options colour mixture, RGBLAC, RGBLAP, RGBWW
Low expansion coefficient, high air tightness

Specifications:

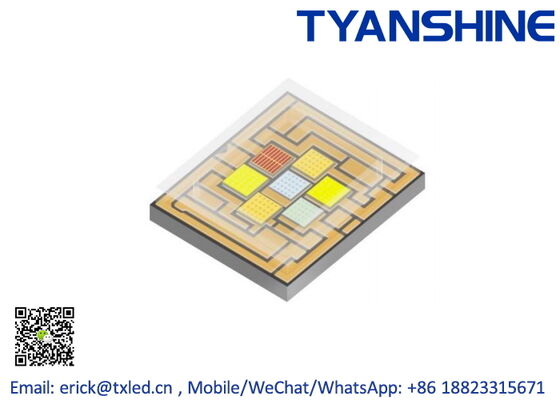

20Watt SMD5050 LED 6IN1 Multi-color

Multi-color	Color	Max.I_F (mA)	V_F(V)	λd (nm) CCT (°K)	Lumen(lm) If=700mA	CRI
RGBLYP 20Watt	R	1000	2.0-2.8	620-625nm	70-100	/
	G	1200	2.8-3.6	520-530nm	150-230	/
	B	1200	2.8-3.6	450-460nm	25-40	/
	L	1200	2.9-3.5	5000-5250K	270-320	/
	Y	1000	2.3-3.0	1500-1600K	110-140	/
	UV	500	3.0-3.8	399-404nm	490-600mW	/

Multi-color	Color	Max.I_F (mA)	V_F(V)	λd (nm) CCT (°K)	Lumen(lm) If=700mA	CRI

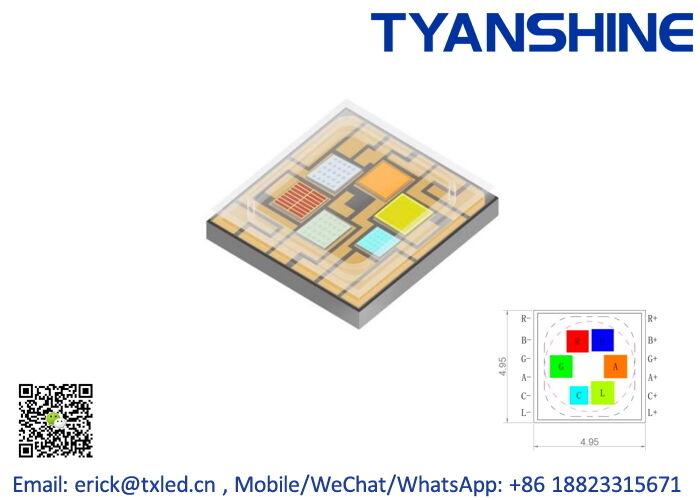

RGBLAC 20Watt	R	1000	2.0-2.8	620-625nm	70-100	/
	G	1200	2.8-3.6	520-530nm	150-230	/
	B	1200	2.8-3.6	450-460nm	25-40	/
	L	1200	2.9-3.5	4030-4280K	190-240	/
	A	1200	2.3-3.0	1850-1950K	130-180	/
	C	700	2.9-3.5	490-495nm	60-70	/

Multi-color	Color	Max.I_F (mA)	V_F(V)	λd (nm) CCT (°K)	Lumen(lm) If=700mA	CRI
RGBLWW 20Watt	R	1000	2.0-2.8	620-625nm	70-100	/
	G	1200	2.8-3.6	520-530nm	150-230	/
	B	1200	2.8-3.6	450-460nm	25-40	/
	L	1200	2.9-3.5	3900-4100K	200-250	/
	W	1200	2.9-3.6	5600-6000K	140-170	90
	WW	1000	2.8-3.6	2850-2960K	120-150	90

20Watt SMD5050 LED 5IN1 Multi-color

Multi-color	Color	Max.I_F (mA)	V_F(V)	λd (nm) CCT (°K)	Lumen(lm) If=1000mA	CRI
RGBLW 20Watt	R	2000	2.0-2.8	630-638nm	80-100	/
	G	1800	2.8-3.6	520-530nm	190-250	/
	B	1800	2.8-3.6	450-460nm	30-45	/
	B	1800	2.8-3.6	465-475nm	65-85	/
	L	2200	2.8-3.6	4250-4500K	285-360	/
	WW	1800	2.8-3.6	2850-3200K	225-285	80

Multi-color	Color	Max.I_F (mA)	V_F(V)	λd (nm) CCT (°K)	Lumen(lm) If=700mA	CRI
RGBWW 20Watt	R	1000	2.0-2.8	620-625nm	70-100	/
	G	1200	2.8-3.6	520-530nm	150-230	/
	B	1200	2.8-3.6	450-460nm	25-40	/
	W	1800	2.9-3.6	5800-6400K	180-230	95
	WW	1800	2.8-3.6	2670-2840K	130-170	95
