Ceramic SMD1212 LED RGBW 120Watt RGBL 180Watt 5000mA Power SMD LEDs

Large Image : Ceramic SMD1212 LED RGBW 120Watt RGBL 180Watt 5000mA Power SMD LEDs

Product Details:

Place of Origin:	CN
Brand Name:	TYANSHINE
Certification:	ISO9001:2008 SGS RoHS
Model Number:	TX-1212RGBW/RGBL

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	In Reel
Delivery Time:	5-10 days
Payment Terms:	ExW, FOB, CIF
Supply Ability:	100000PCS/month

Contact Now

Detailed Product Description

Color:	4in1 RGBW / RGBL	Power:	120Watt / 180Watt

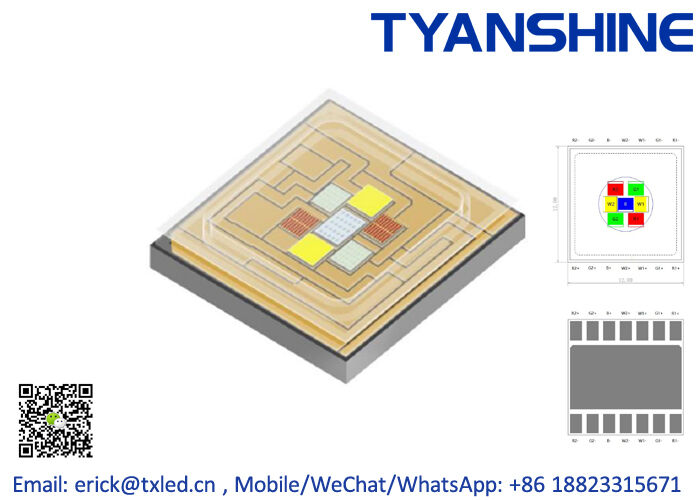

Package Size:	1.2x1.2cm	Substrate:	Ceramic
Cetification:	RoHS Reach
Highlight:	smd led chip , smd led diode

Ceramic SMD1212 LED RGBW 120Watt RGBL 180Watt 5000mA Power SMD LEDs

Features:

Small size, high power Ceramic SMD Package,
Lower thermal resistance, higher light efficiency
Ceramic base with good heat conductivity to enlarge the lifespan
Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
SMD Components suitable for reflow-solidering,
Low expansion coefficient, high air tightness

Specifications:

120Watt 4in1 RGBW

Color	Vf (V)	Max. If (mA)	λd(nm) CCT(K)	φv(lm) IF=1000mA
Red	2.4-3.2V	5000mA x 2	620-627nm	230-290lm
Green	3.2-4.0V	5500mA x 2	527-532nm	680-850lm
Blue	3.0-3.8V	6000mA	450-455nm	60-80lm
Cool White	3.0-3.8V	5000mA x 2	5700-6500K	800-900lm

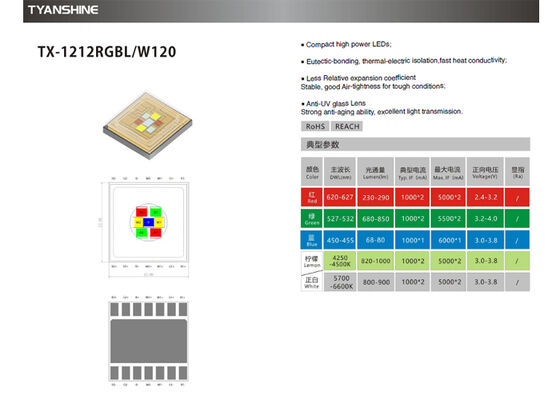

120Watt 4in1 RGBL

Color	Vf (V)	Max. If (mA)	λd(nm) CCT(K)	φv(lm) IF=1000mA
Red	2.4-3.2V	5000mA x 2	620-627nm	230-290lm
Green	3.2-4.0V	5500mA x 2	527-532nm	680-850lm
Blue	3.0-3.8V	6000mA x 1	450-455nm	60-80lm
Lime	3.0-3.8V	5000mA x 2	4250-4500K	820-1000lm

180Watt 4in1 RGBW

Color	Vf (V)	Max. If (mA)	λd(nm) CCT(K)	φv(lm) IF=1000mA
Red	6.0-7V	5000mA	620-625nm	360-500lm
Green	7.5-8.5V	5500mA	527-532nm	900-1200lm
Blue	8.3-9.3V	6000mA	452-457nm	145-185lm
Cool White	8.3-9.3V	5000mA	5700-6500K	1100-1450lm

180Watt 4in1 RGBL

Color	Vf (V)	Max. If (mA)	λd(nm) CCT(K)	φv(lm) IF=1000mA
Red	6.0-7V	5000mA	620-625nm	360-500lm
Green	7.5-8.5V	5500mA	527-532nm	900-1200lm
Blue	8.3-9.3V	6000mA	452-457nm	145-185lm
Lime	8.3-9.3V	5000mA	4150-4400K	800-1100lm
