Product Details:
Payment & Shipping Terms:
|
| Wattate: | 90W 150W 250W | Input Voltage: | 12V-16V |
|---|---|---|---|
| Color Temperature: | 6500K-8500K | Light Efficiency: | 45lm/W |
| Highlight: | high power led array,led lighting engine |
||

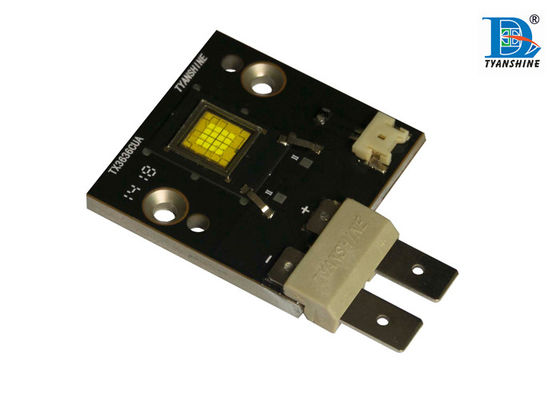

White LED Light Engine 6500K-8500K Small LES 90W 150W 250W LED Emitter
Medical illumination LED Light Engine with Small LES and High Lumens/mm2
Features:
1, Small LES, 5W/mm² ;
2, Eutectic packages technique, fast heat-conductivity;
3, Special Parallel and Serial connection,1/4 current for the same power compared with the similar product in the market ;
4, Average efficiency upto 40lm/W @Tj=85℃ with full power;
5, Excellent effect of color-mixing for 3Colors or 4Colors LEDs light source;
6, Quick on/off; Anti-poisonous or toxic, comply with RoHS
Specifications:
| Code | Color |
Vf (V) |
If (A) |
CCT(K) |
Φv (lm) |
Power |
LES (mm) |
| TX-3636W90FC120 -NUVENG-A01 |
White | 12-16 | 6.5 | 6500-8500 | 3600-4000 | 90 | 4.3 x 4.3 |
| TX-3636W150FC120 -NUVENG-A01 |
White | 12-16 | 11 | 6500-8500 | 6000-6500 | 150 | 6.5 x 6.5 |
Applications:
Entertainment Wash Lighting
Architectural lighting
Medical lighting
Event lighting
Stage lighting Projection
Fiber Coupled Illumination
