Product Details:
Payment & Shipping Terms:
|
Wattage: | 1W | Vf: | 3-4V |
---|---|---|---|
If: | 350mA | Chip Brand: | Cree |
Highlight: | smd led diode,3535 smd led |

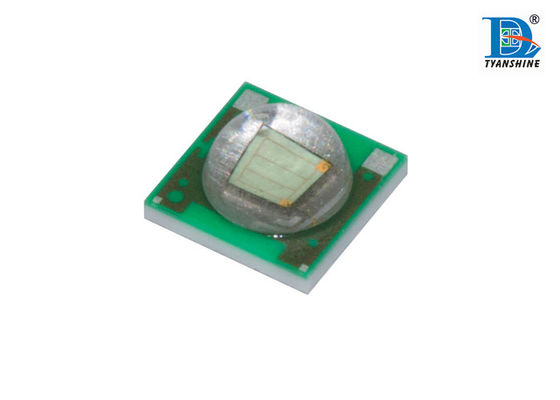

SMD White LED Diode
XP-E SMD LED Diode 1W 3W White Red Green Blue
Features:
Specifications:
Code | Color | Vf (V) | If (mA) | λd(nm) CCT(K) |
φv(lm) | LES(mm) |
TX-3535R3FC120-OGVEND34-03 | Red | 1.9-2.5 | 350 | 618-628 | 50-65 | Φ2.75 |
TX-3535G3FC120-OGVEND34-03 | Green | 2.8-3.6 | 350 | 520-530 | 80-110 | |
TX-3535B3FC120-OGVEND34-03 | Blue | 2.8-3.6 | 350 | 456-468 | 19-31 | |
TX-3535W3FC120-OGVEND34-A03 | White | 2.8-3.6 | 350 | ≥7000 | 94-139 | |
TX-3535W3FC120-OGVEND34-B03 | White | 2.8-3.6 | 350 | 4000-7000 | 107-122 | |
TX-3535W3FC120-OGVEND34-C03 | WarmWhite | 2.8-3.6 | 350 | 2700-4000 | 87-122 | |
TX-3535W3FC120-OGVEND34-D03 | WarmWhite | 2.7-3.5 | 350 | ≤2700 | 67-94 |
Applications:
LED Flashlight
Automobile Illumination
Architectural lighting
Landscape lighting
LED Street Light, LED High Bay Lights, LED Tunnel Lights
Secruity application CCTV products
