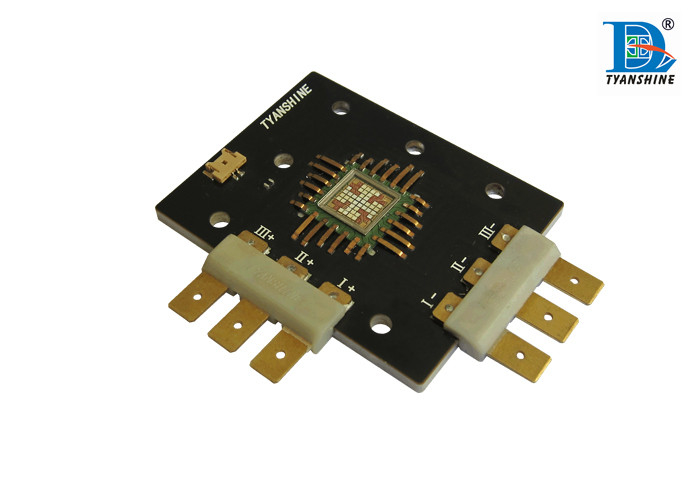

RGB LEDs 250W LED Engine Module for LED Moving-Heads Beam Lighting

China RGB LEDs 250W LED Engine Module for LED Moving-Heads Beam Lighting supplier
RGB LEDs 250W LED Engine Module for LED Moving-Heads Beam Lighting supplier RGB LEDs 250W LED Engine Module for LED Moving-Heads Beam Lighting supplier

Large Image :  RGB LEDs 250W LED Engine Module for LED Moving-Heads Beam Lighting

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: ISO9001:2008 ROHS
Model Number: TX-5266RGB250FC120 -NUVENG-01

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: In Tray
Delivery Time: 5-10 days
Payment Terms: ExW
Supply Ability: 10,000pcs/week
Contact Now
Detailed Product Description
Power: 250W Forward Voltage: 12V
Forward Current: 5A Per LED Die Color: RGB
Lumen: 3700lm - 4500lm LES: Φ11mm
High Light:

high power led array

,

led lighting engine

RGB LED Light Engine 250W,Cree Eutectic Flip-chip







High Power 250W RGB LED Light Engine





Features:



1, Small LES, 5W/mm²

2, Eutectic flip-chip bonding technique

3, Higher Forward Voltage, Lower Forward Current,

4, Average efficiency upto 40lm/W @Tj=85℃ with full power

5, Excellent effect of color-mixing for 3 Colors or 4 Colors LEDs light source

6, Copper MCPCB, high thermal conductivity





Specifications:



Code Color Vf (V) If (A)

λd(nm)

CCT(K)

φv(lm) Power LES(mm)

TX-5266RGB250FC120

-NUVENG-01

Red 8-12 5 615-625 1000-1200 52

9 x 9

Φ11

Green 12-16 5 520-530 2000-2500 72
Blue 12-16 5 455-465 700-760 72



Applications:



Entertainment lighting

Architectural lighting

Medical lighting

Event lighting

Stage lighting Projection



Dimensions:



RGB LEDs 250W LED Engine Module for LED Moving-Heads Beam Lighting
