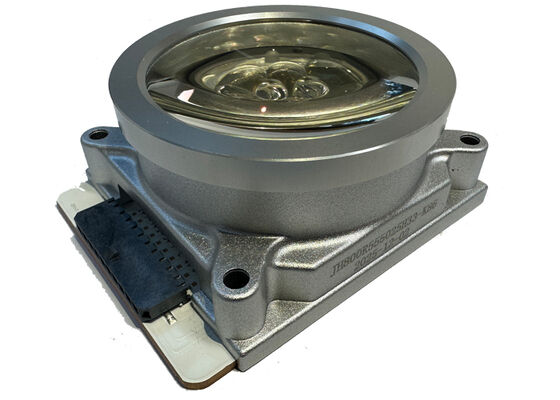

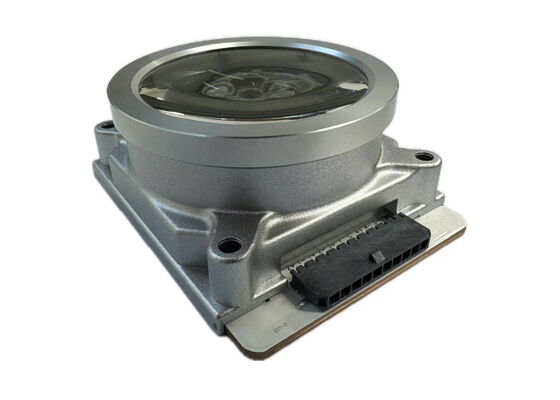

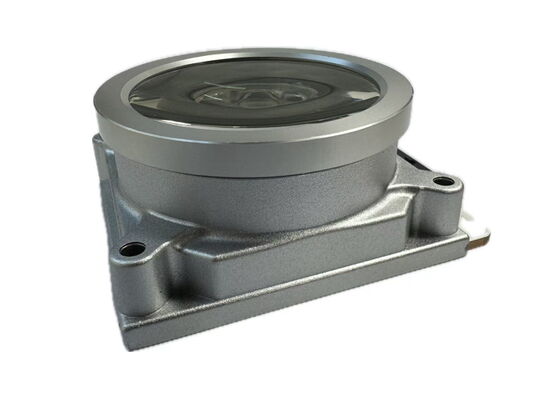

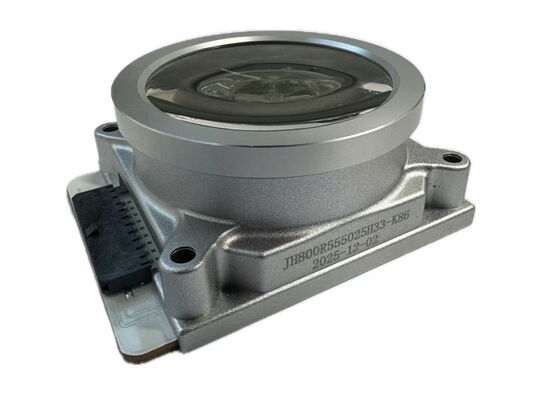

Stage Lighting White 800Watt 30V LED Engine Gobo Beam Light 8500K LED Module
Technical background:
Integrating the latest advanced high-power LED with a dedicated heat dissipation substrate design;
Possessing an excellent heat dissipation condition to allow long-term use at full power;
Featuring high brightness, compact size, and excellent thermal management structure;
Using specific wavelength coating to maximize optical efficiency.
Key Features:
1, Well selected high brintness and stablility Ceramic based LEDs;
2, Small aperture size and ultra-narrow emission angle;
3, Optical alignment assembly process ensures product consistency;
4, Adopting the advanced packaging process to ensures an excellent heat dissipation efficiency;
5, Comparing with peer products, it can maximize the use of limit power and the utilization of maximum luminous efficiency.
Specifications:
Recommended Typical conditions:
| Item | Value | Unit |
| Forward Current | 6.2 | A |
|
Working Temperature (NTC thermistor value:1688Ω / 80°C) |
≤80 | °C |
| Lifetime | ＞20000 | H |
Extreme Using conditons:
| Item | Value | Unit |
| Min. forward current | 10 | μA |
| Max. forward current | 6.8 | A |
|
Peak surge current (Instantaneous time ≤ 10μs; duty cycle ≤ 90%; ambient temperature ≤ 80℃) |
8 | A |
|
NTC Max. Working Temperature (NTC thermistor value:1452Ω / 85°C) |
85 | °C |
| Storage Temperature | minus 40 - 85 | °C |
Optical Data:
| ITEM | Value | Unit | ||
| Related Color Temperature | Typ. | CCT | 8500 | K |
| Min. | 7600 | |||
| Max. | / | |||
| Lumen Output | Typ. | Φv | 48800 | lm |
| Min. | 44700 | |||
| Max. | ||||
| Colour Rendering Index | Typ. | Ra | 73 | |
| Min. | 68 | |||
| Max. | 90 | |||
Spectrum Testing Results:
Optical path diagram:
Dimensions:
Pin Definition:
| PIN | P1 | P2 | P3 | P4 | P5 | P6 | P7 | P8 | P9 | P10 |
| Definition | W1+ | W1+ | W1- | W1- | W2+ | W2+ | W2- | W2- | NTC | NTC |
| Value | 30～34V/(6.5A) | 33～37V/(6.5A) | 1.4521K/85℃ | |||||||
Applications:
• Stage Lighting
• Architectural Lighting
• Medical Lighting
• Gobo Beam Lighting
• Fiber Coupled Illumination
• Displays and Projection
