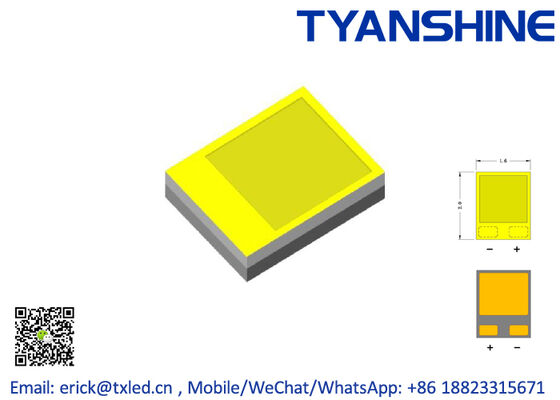

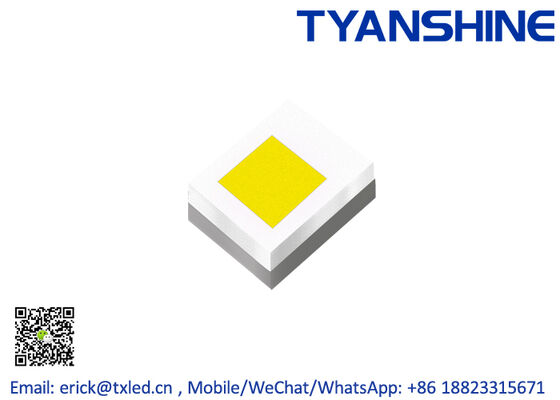

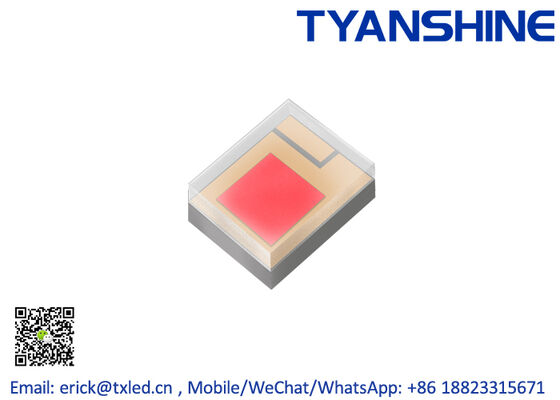

Ceramic SMD2016 LEDs 5Watt 2500K 6000k White PC-Amber Lime SMD Power LED 1800mA

Large Image : Ceramic SMD2016 LEDs 5Watt 2500K 6000k White PC-Amber Lime SMD Power LED 1800mA

Product Details:

Place of Origin:	CN
Brand Name:	TYANSHINE
Certification:	ISO9001:2008 SGS RoHS
Model Number:	TX-2016W5

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	In Reel
Delivery Time:	5-10 days
Payment Terms:	ExW, FOB, CIF
Supply Ability:	100000PCS/month

Contact Now

Detailed Product Description

Color:	Lime/PC-Amber, White	Power:	5W
If:	1800mA	Package Size:	SMD2016
Substrate:	Ceramic	Certification:	RoHS REACH IEC62471

Ceramic SMD2016 LEDs 5Watt 2500K 6000k White PC-Amber Lime SMD Power LED 1800mA

Ceramic SMD2016 LEDs 5Watt 2500K 6000k White PC-Amber Lime SMD Power LED 1800mA

Features:

Small size,SMD Package with ceramic substrate
Lower thermal resistance, higher light efficiency
Ceramic base with good heat conductivity to enlarge the lifespan
Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
SMD Components suitable for reflow-solidering,
Multi color options, Red Green Blue White Yellow Ultraviolet(UV) Infrared(IR)

Specifications:

Color	Vf (V)	Max. If (mA)	λd(nm) CCT(K)	φv(lm) IF=1000mA	CRI
PC-Amber	2.9-3.2V	1800mA	1750-1900K (587-590nm)	280-340lm	/
Lime	3.0-3.3V	1800mA	4030-4280k (565-568nm)	480-550lm	/
White	2.9-3.4V	1800mA	5700-6500K	400-460lm	70
White	2.7-3.4V	1800mA	2400-2500K	190-240lm	96
