Product Details:
Payment & Shipping Terms:
|
| Color: | R/G/B/C/A/L/A/W | Power: | 10W / 12W |
|---|---|---|---|
| Current: | 2500mA | PackageSize: | SMD3535 |
| Substrate: | Ceramic | Certification: | RoHS REACH IEC62471 |

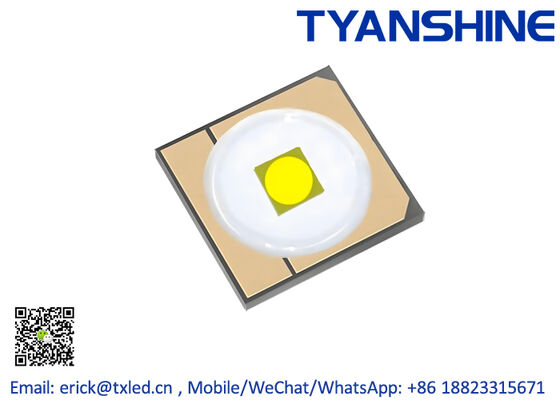

Ceramic SMD3535 LED 10Watt Red Green Blue White PC-Amber Lime Flat Lens LED 2500mA
Key Features:
Specifications:

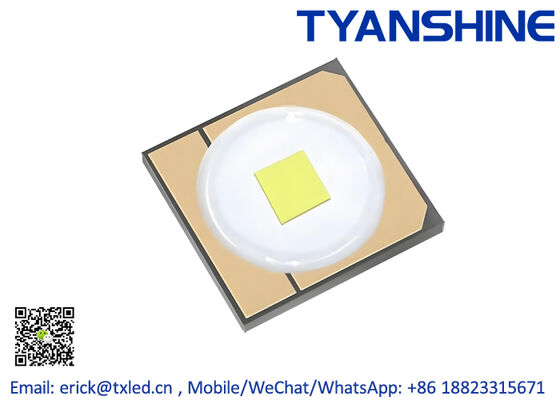

SMD3535 LED 10Watt class, Flat, Rectangular LED die
| Color | Vf (V) | Max. If (mA) | λd(nm) CCT(K) |
φv(lm) IF=1000mA |
CRI |
| Red | 1.9-2.6V | 2500mA | 620-625nm | 125-160lm | |
| Green | 2.7-3.5V | 2500mA | 522-532nm | 250-320lm | |
| Royal Blue | 2.8-3.6V | 2500mA | 450-460nm | 40-65lm | |
| Light Blue | 2.8-3.6V | 2500mA | 465-475nm | 80-105lm | |
| Cyan | 2.8-3.6V | 2500mA | 485-510nm | 250-320lm | |
| Lime | 2.8-3.6V | 2500mA |
4030-4280K (565-568nm) |
350-450lm | |
| PC-Amber | 2.9-3.2V | 2500mA |
1750-1900K (587-590nm) |
235-310lm | |
| Cool White | 2.8-3.4V | 2500mA |
5700-6500K 4800-5500K |
350-480lm | 70 |
| Neutral White | 2.8-3.4V | 2500mA | 3780-4300K | 260-320lm | 80 |
| Warm White | 2.7-3.4V | 2500mA | 2870-3130K | 265-305lm | 80 |
| Warm White | 2.7-3.4V | 2500mA | 2600-2800K | 250-300lm | 80 |
| Warm White | 2.7-3.4V | 2500mA | 2130-2270K | 250-300lm | / |
SMD3535 LED 12Watt class, Flat, Circular LED die
| Color | Vf (V) | Max. If (mA) | CCT(K) |
φv(lm) IF=1000mA |
LES |
| Lime | 2.9-3.2V | 4000mA |
4030-4280K (565-568nm) |
480-630lm |
Diameter 1.35mm |
| Lime | 2.9-3.2V | 4000mA |
5400-5900K (549-552nm) |
400-600lm | |
| PC-Amber | 2.9-3.2V | 4000mA |
1750-1900K (587-590nm) |
250-320lm | |
| Cool White | 2.9-3.2V | 4000mA |
6000-7000K |
185-250lm |
Applications:
Stage Lighting,
Flashlight;
Automobile Illumination
Architectural lighting
Landscape lighting
