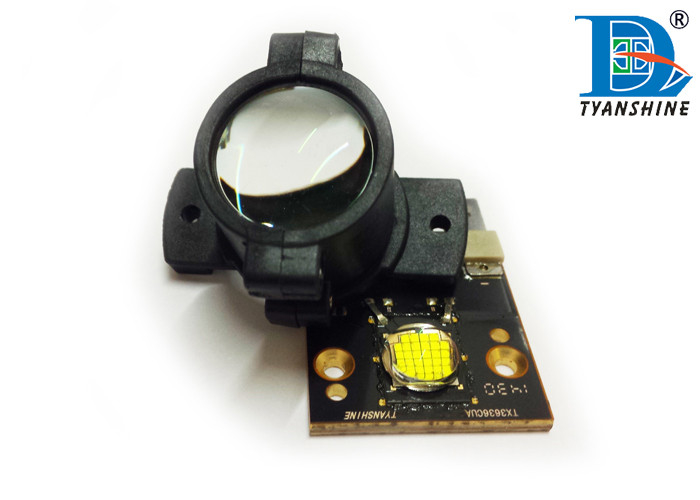

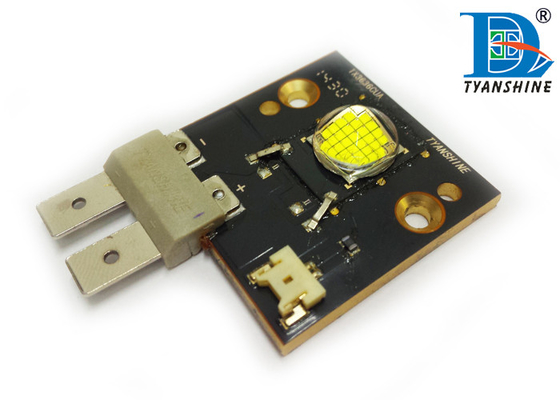

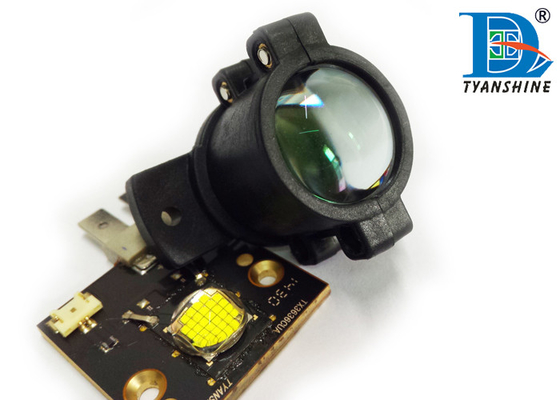

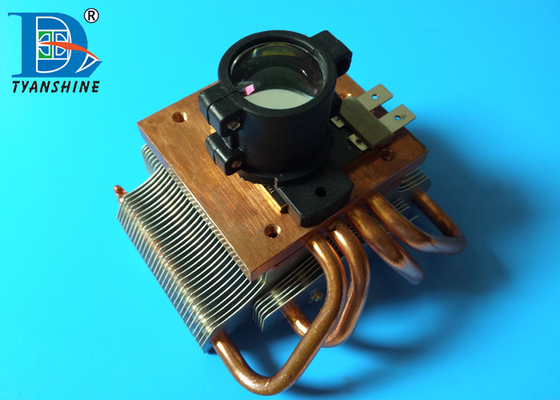

Cool White 7500K LED Lighting Engine 150W Moving Heads LED Module

China Cool White 7500K LED Lighting Engine 150W Moving Heads LED Module supplier
Cool White 7500K LED Lighting Engine 150W Moving Heads LED Module supplier Cool White 7500K LED Lighting Engine 150W Moving Heads LED Module supplier Cool White 7500K LED Lighting Engine 150W Moving Heads LED Module supplier Cool White 7500K LED Lighting Engine 150W Moving Heads LED Module supplier

Large Image :  Cool White 7500K LED Lighting Engine 150W Moving Heads LED Module

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: RoHS SGS
Model Number: TX-3636W150FC100-NUVENG-A01

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: In plastic Tray
Payment Terms: Western Union, T/T, L/C,PayPal
Contact Now
Detailed Product Description
Beam Angle: 100 Degree CCT: 6500K-8500K
Power: 150Watt Current: 11A
Voltage: DC12-16V Dimension: 36*36mm
LES: 6.5*6.5mm
High Light:

high power led array

,

led light module

Cool White 7500K LED Lighting Engine 150W Moving Heads LED Module






Features of the Medical Light LED Engine:





1, Small LES, 5W/mm² , high brightness and light density. To generate strong light beam used for

Moving head lights.



2, Eutectic packages technique,compact light source, fast heat-conductivity, low thermal resistance



3, Special Parallel and Serial connection,1/4 current for the same power compared with Luminus CBT-90;



4, Average efficiency upto 40lm/W @Tj=85℃ with full power;



5, Multi chip on board technology, using 3mm Copper substrate to absorb heat immediately.






Cool White 7500K LED Lighting Engine 150W Moving Heads LED Module





Specifications:



Code Color

Vf

(V)

If

(A)



CCT(K)

Φv

(lm)

Power

LES

(mm)

TX-3636W90FC120
-NUVENG-A01
White 12-16 6.5 6500-8500 3600-4000 90 4.3 x 4.3
TX-3636W150FC120
-NUVENG-A01
White 12-16 11 6500-8500 6000-6500 150 6.5 x 6.5



Ta=85℃

Parameter Symbol Value (Max.) Unit
LED Junction Temperature Tj 150
Power Dissipation PD 150 W
Continuous Forward Current IF 11 A
ElectrostaticDischarge Threshoid ESD 2000 V



If=11 A (Ta=85°C)

Parameter Symbol Values Unit
Min. Typical Max.
Luminous Flux φV 8500 9500 - lm
Viewing Angle at 50﹪IV 1/2 - 115 - Degree
Forward Voltage Vf 12 14 16 V
Colour Temperature CCT 6500 7500 8500 K
Thermal Resistance Junction to Case J-C - 0.2 - K/W



Typical Electrical / Optical Characteristics Curves

Cool White 7500K LED Lighting Engine 150W Moving Heads LED Module





Applications:



  • Entertainment lighting, Projection lights, Moving-Heads
  • Architectural lighting
  • Medical Illumination
  • Event lighting
  • Stage lighting Projection
  • Fiber optic lighting




Package: In Plastic Tray (4 pcs)
