White 5200K LED Lighting Engine Medical illumination CRI 90Ra 90W LEDs Emitter

China White 5200K LED Lighting Engine Medical illumination CRI 90Ra 90W LEDs Emitter supplier
White 5200K LED Lighting Engine Medical illumination CRI 90Ra 90W LEDs Emitter supplier White 5200K LED Lighting Engine Medical illumination CRI 90Ra 90W LEDs Emitter supplier White 5200K LED Lighting Engine Medical illumination CRI 90Ra 90W LEDs Emitter supplier

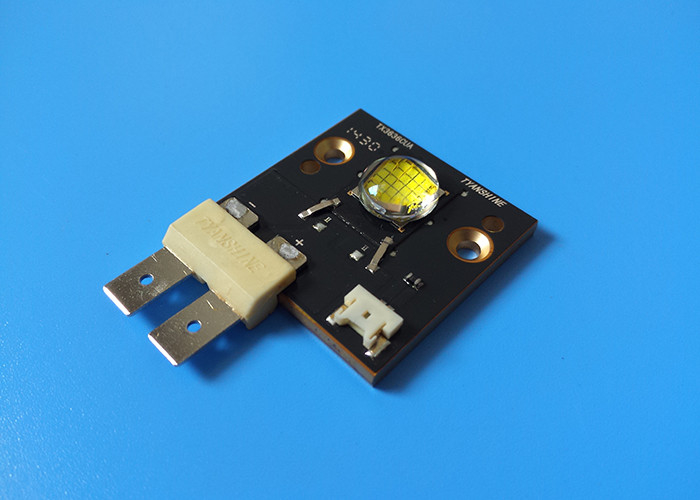

Large Image :  White 5200K LED Lighting Engine Medical illumination CRI 90Ra 90W LEDs Emitter

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: RoHS SGS
Model Number: TX-3636W90FC120-NUVENG-B01H90

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: In plastic Tray
Payment Terms: Western Union, T/T, L/C,PayPal
Contact Now
Detailed Product Description
Lumen: 9500lm CCT: 5200K
Power: 90W Vf: 12-16V
If: 6.5A CRI: 90Ra
High Light:

high power led array

,

led light module



White 5200K LED Lighting Engine Medical illumination CRI 90Ra 90W LEDs Emitter






Features of the White LED:





1, Small LES, 5W/mm² , high brightness and light density. To generate strong light beam used for

Moving head lights.



2, Eutectic packages technique,compact light source, fast heat-conductivity, low thermal resistance



3, Special Parallel and Serial connection,1/4 current for the same power compared with Luminus CBT-90;



4, Average efficiency upto 40lm/W @Tj=85℃ with full power;



5, Multi chip on board technology, using 3mm Copper substrate to absorb heat immediately.










Specifications:



Code Color

Vf

(V)

If

(A)



CCT(K)

Φv

(lm)

Power

LES

(mm)

TX-3636W90FC120
-NUVENG-A01
White 12-16 6.5 6500-8500 3600-4000 90 4.3 x 4.3
TX-3636W150FC120
-NUVENG-A01
White 12-16 11 6500-8500 6000-6500 150 6.5 x 6.5



Ta=85℃

Parameter Symbol Value (Max.) Unit
LED Junction Temperature Tj 150
Power Dissipation PD 150 W
Continuous Forward Current IF 11 A
ElectrostaticDischarge Threshoid ESD 2000 V



If=11 A (Ta=85°C)

Parameter Symbol Values Unit
Min. Typical Max.
Luminous Flux φV 8500 9500 - lm
Viewing Angle at 50﹪IV 1/2 - 115 - Degree
Forward Voltage Vf 12 14 16 V
Colour Temperature CCT 6500 7500 8500 K
Thermal Resistance Junction to Case J-C - 0.2 - K/W



Typical Electrical / Optical Characteristics Curves

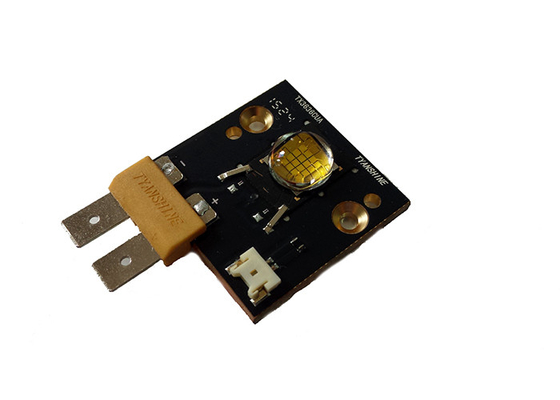

White 5200K LED Lighting Engine Medical illumination CRI 90Ra 90W LEDs Emitter





Applications:



  • Entertainment lighting, Projection lights, Moving-Heads
  • Architectural lighting
  • Medical lighting
  • Event lighting
  • Stage lighting Projection
  • Fiber optic lighting



Package: In Plastic Tray (4 pcs)

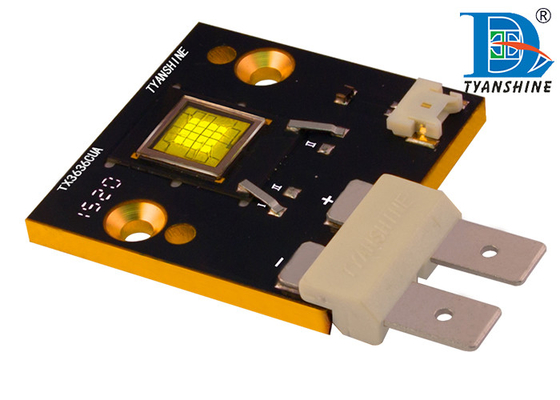

White 5200K LED Lighting Engine Medical illumination CRI 90Ra 90W LEDs Emitter
