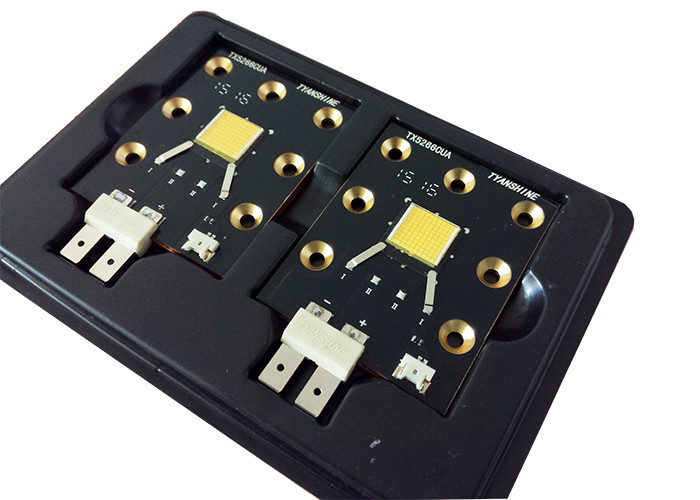

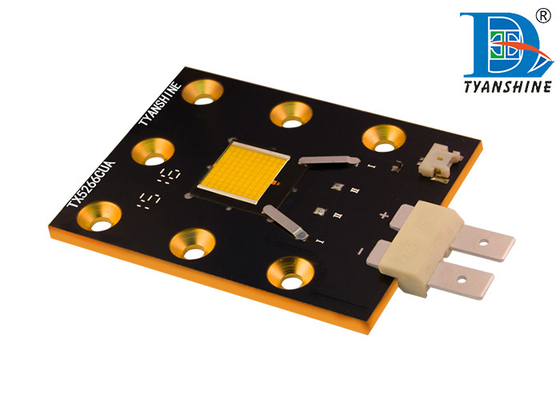

High Flux Density LEDs Emitter CSP LED Engine 300W Cold White 8000K

All Products

Smart TunableWhite COB LED (26)

Matrix White LED (68)

Matrix Colour LED (14)

Stage White LED (60)

Ceramic SMD LEDs (37)

RGB LED Array (66)

High Power LED Diode (45)

High CRI LED (17)

RGB LED Diode (26)

White LED Module (22)

Multichip LED (46)

UV LED Diode (23)

Multi Color LED Diode (32)

Automobile LEDs (0)

Best Products

300W 42V LED Light Engine

Certification

I was very pleased to find your new products,I'm very interested in your new cob rgb cob rgbw 30w and 60w,and the new 70-120w 200-300W

—— Guillermo

Many of your products look specilized in the entertainament Studio/stage market.

—— Marcelo Diaz

Please keep me informed on any new product you have.We hope to have a nice pleasant, long cooperation.

—— Fausto Orsatti

Contact Now

Detailed Product Description

CCT:	6500K-8000K	Power:	300W
Voltage:	28V- 32V	Forward Current:	10A
Lumen:	20000lm - 22500lm	Efficiency:	75lm/W
CRI:	80Ra
High Light:	high power led array , led light module

High Flux Density LEDs Emitter CSP LED Engine 300W Cold White 8000K

Features:

1, Small LES,High Flux Density White LED Emitters;

2, Eutectic-bonding, CSP packaging tecnology

3, Aluminium Nitride(AIN) Ceramic substrate, high thermal conductivity;

4, High light efficiency, long lumen mantenance

Specifications:

Absolute Maximum Ratings at T_a=85℃

Characteristics at If=10A (T_a=85°C):

Parameter	Symbol	Values			Units
Parameter	Symbol	Min.	Typical	Max.	Units
Luminous Flux	φV	20000	22500	-	lm
Viewing Angle at 50﹪IV	2θ_1/2	-	115	-	Deg.
Forward Voltage	V_F	28	30	32	V
Correlated Colour Temperature	CCT	6000	7000	8000	K
