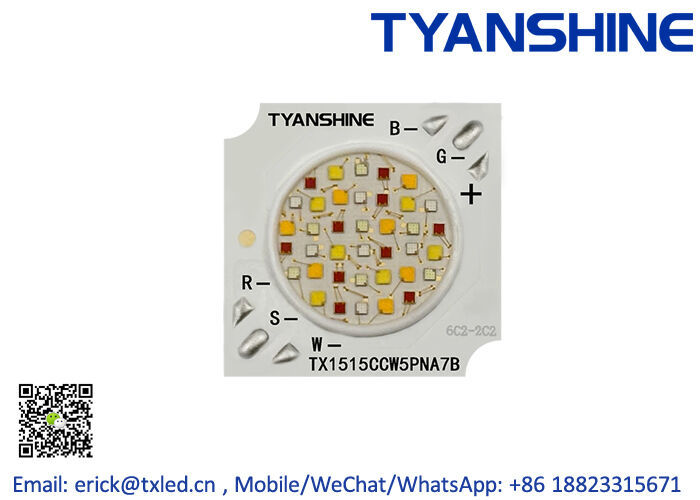

Smart Lighting RGBW LED 40Watt COB LED LES11mm 21V COB RGB+Tunable White

: Large Image : Smart Lighting RGBW LED 40Watt COB LED LES11mm 21V COB RGB+Tunable White

Product Details:

Place of Origin:	CN
Brand Name:	TYANSHINE
Certification:	ISO9001:2008 ROHS SGS
Model Number:	TX-1515RGBWS40C11V07-20H90

Payment & Shipping Terms:

Minimum Order Quantity:	10
Packaging Details:	In tray
Payment Terms:	Western Union, T/T, L/C

Contact Now

Detailed Product Description

Color:	RGBW	Current:	500mA
Voltage:	19V - 23V	Power:	40 Watt
LES:	Φ11	Beam Angle:	120°
CRI:	90
Highlight:	rgb led chip , led light module

Smart Lighting RGBW LED 40Watt COB LED LES11mm 21V COB RGB+Tunable White

Key Features:

■ Excellent color-mixing, no color deviation, even color spot;

■ Cross-distribution of different colors, no polarized light;

■ High light quality, anti-glare

■ Fast thermal conductivity substrate, lower resistance

■ Compatible COB PKG size, easy to adapt accessories

Specifications:

Code

Color

(V)

(mA)

Rθ_J-C

Φv

(lm)

Power

LES

(mm)

TX-1515RGBWS40C11V07-20H90

RGB+TunableWhite

19-23V

500

0.75 K/W

1700-2000

Characteristics at If=1800mA (Ta=85°C)

Parameter	Symbol	Emitting Color	Values
			Min.	Typ.	Max.
Luminous Flux	φ_v	R	370lm	430lm	-
		G	440lm	520lm	-
		B	95lm	110lm	-
		W	440lm	520lm	-
		S	360lm	420lm	-
Dominant Wavelength	λd	R	625nm	630nm	635nm
		G	513nm	518nm	523nm
		B	445nm	450nm	455nm
Colour Temperature	CCT	W	6000K	-	6500K
		S	2670K	-	2780K
Forward Voltage	V_f	R	19V	21V	23V
		G	19V	21V	23V
		B	19V	21V	23V
		W/S	19V	21V	23V

Dimsions:

Applications:

Entertainment lighting, Projection lights

Architectural lighting

Medical lighting

Event lighting

Stage lighting Projection

Fiber optic lighting
