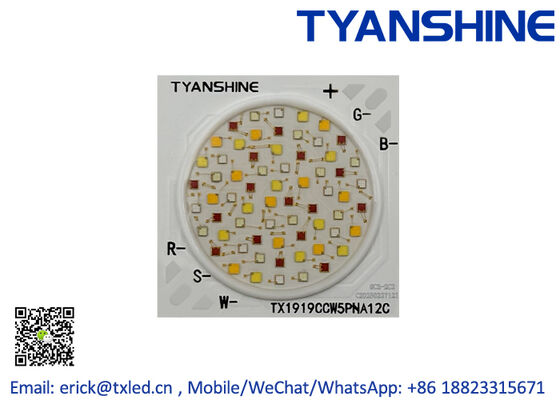

Smart Lighting 700mA RGBW LED 60W COB LED LES16mm 36V COB RGB+Tunable White

: Large Image : Smart Lighting 700mA RGBW LED 60W COB LED LES16mm 36V COB RGB+Tunable White

Product Details:

Place of Origin:	CN
Brand Name:	TYANSHINE
Certification:	ISO9001:2008 ROHS SGS
Model Number:	TX-1919RGBWS60C16V12-20H90

Payment & Shipping Terms:

Minimum Order Quantity:	10
Packaging Details:	In tray
Payment Terms:	Western Union, T/T, L/C

Contact Now

Detailed Product Description

Color-mixing:	RGBW	Forward Current:	700mA
Forward Voltage:	35-37V	Power:	60W
LES:	Φ16	Dimension:	19 * 19mm
CRI:	90
Highlight:	rgb led chip , led light module

Smart Lighting 700mA RGBW LED 60W COB LED LES11mm 36V COB RGB+Tunable White

Key Features:

■ Excellent color-mixing, no color deviation, even color spot;

■ Cross-distribution of different colors, no polarized light;

■ High light quality, anti-glare

■ Fast thermal conductivity substrate, lower resistance

■ Compatible COB PKG size, easy to adapt accessories

Specifications:

Code

Color

(V)

(mA)

Power

LES

(mm)

TX-1919RGBWS60C16V12-20H90

RGB+TunableWhite

36V

700

Characteristics at If=1800mA (Ta=85°C)

Parameter	Symbol	Emitting Color	Values
			Min.	Typ.	Max.
Luminous Flux	φ_v	R	650lm	760lm	-
		G	760lm	900lm	-
		B	160lm	190lm	-
		W	760lm	900lm	-
		S	640lm	750lm	-
Dominant Wavelength	λd	R	620nm	625nm	635nm
		G	512nm	517nm	522nm
		B	445nm	450nm	455nm
Colour Temperature	CCT	W	6000K	-	6500K
		S	2670K	-	2780K
Forward Voltage	V_f	R	33V	35V	39V
		G	33V	36V	39V
		B	33V	36V	39V
		W/S	33V	36V	39V

Dimsions:

Smart Lighting 700mA RGBW LED 60W COB LED LES16mm 36V COB RGB+Tunable White

Applications:

Entertainment lighting, Projection lights

Architectural lighting

Medical lighting

Event lighting

Stage lighting Projection

Fiber optic lighting
