Multi-color 400mA RGBW 3000K LED 40W COB LED LES11mm 21V LED COB RGBW

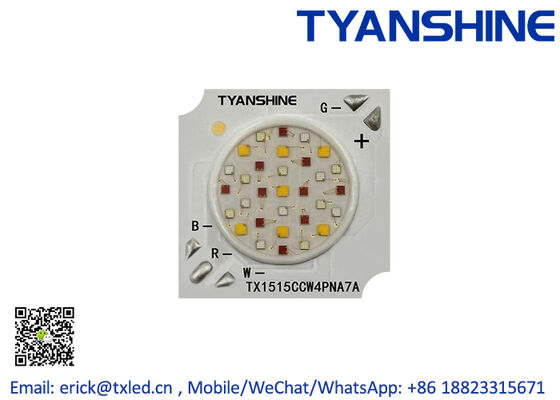

: Large Image : Multi-color 400mA RGBW 3000K LED 40W COB LED LES11mm 21V LED COB RGBW

Product Details:

Place of Origin:	CN
Brand Name:	TYANSHINE
Certification:	ISO9001:2008 ROHS SGS
Model Number:	TX-1515RGBS40C11V07-20H90

Payment & Shipping Terms:

Minimum Order Quantity:	10
Packaging Details:	In tray
Payment Terms:	Western Union, T/T, L/C

Contact Now

Detailed Product Description

Color-mixing:	RGBW	Current:	400mA
Voltage:	21V	Power:	40W
LES:	Φ11mm	COB Size:	15.85x15.85mm
CRI:	90
Highlight:	rgb led chip , rgb power led

Multi-color 400mA RGBW 3000K LED 40W COB LED LES11mm 21V LED COB RGBW

Key Features:

■ Excellent color-mixing, no color deviation, even color spot;

■ Cross-distribution of different colors, no polarized light;

■ High light quality, anti-glare

■ Fast thermal conductivity substrate, lower resistance

■ Compatible COB PKG size, easy to adapt accessories

Specifications:

Code

Color

(V)

(mA)

CRI

CCT

Power

LES

(mm)

TX-1515RGBS40C11V07-20H90

RGBW

19-23V

400

90+

3000K

40W

Characteristics at If=400mA (Ta=25°C)

Parameter	Symbol	Emitting Color	Values
			Min.	Typ.	Max.
Luminous Flux	φ_v	R	420lm	490lm	-
		G	500lm	600lm	-
		B	100lm	120lm	-
		W	450lm	530lm	-
Dominant Wavelength	λd	R	625nm	630nm	625nm
		G	512nm	517nm	522nm
		B	445nm	450nm	455nm
Colour Temperature	CCT	W	2950K	-	3150K
Forward Voltage	V_f	R	19V	21V	23V
		G	19V	21V	23V
		B	19V	21V	23V
		W	19V	21V	23V

Applications:

Entertainment lighting,

Architectural lighting

Smart lighting

Event lighting

Commercial Lighting

Residential Lighting
