Product Details:
Payment & Shipping Terms:
|
| Power: | 10W | Voltage: | 3V |
|---|---|---|---|
| Current: | 1200mA | Package Size: | SMD3535 |
| Color: | RGBW / RGBA / RGBL | Substrate: | Ceramic |
| Lens Type: | Dome / Flat | ||
| Highlight: | smd led chip,smd led diode |
||

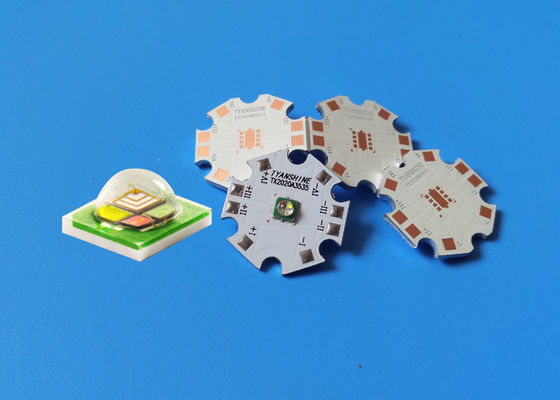

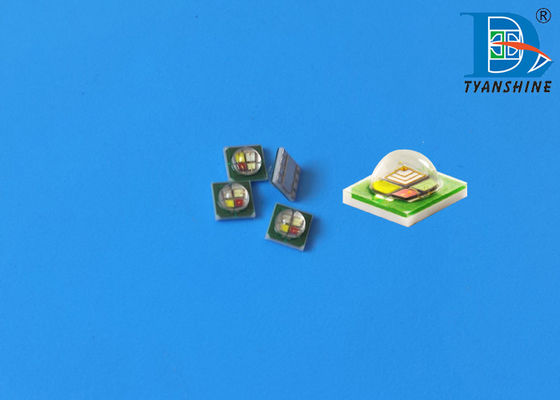

Ceramic SMD3535 LEDs RGBW 10Watt RGBL LED 4in1 SMD LED Components
Key Features:
1, Small package for RGBW LEDs,
2, Ceramic base, higher heat conductivity
3, One LED to replace 4 LEDs, save cost
Advantages ( C3535 RGBW Package LEDs):
1, Eutectic-bonding packaging technique with flip-chips on a ceramic base,
stronger cohesion, less coefficient of expansion, more stable,
tighter air-proof to enable tough outdoor application circumstances;
2, 30-50 times higher cohesion than other products by the Eutectic-bonding, higher conductivity upto 160W/mK;
3, Anti-UV silicon domed lens, anti-aging and better light direction;
4,Long lifespan over 50,000 hrs,Smaller package size for luminaries manufactures.
Specification:

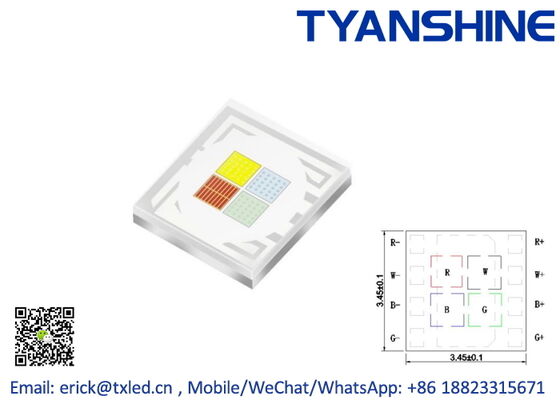

(10W Ceramic SMD3535 RGBW LEDs, Flat Lens
| Item Code | Color | Max. IF (mA) |
VF (V) |
λd (nm) CCT (°K) |
Beam Angle (°) |
Lumen (lm) |
CRI |
|
RGBW
(10W) |
R | 1200 | 2.0-2.7 | 620-625nm | 120 | 80-110 | / |
| G | 1200 | 2.9-3.6 | 522-532nm | 140-195 | / | ||
| B | 1200 | 3.0-3.4 |
450-460nm |
30-45 | / | ||
| W | 1200 | 3.0-3.4 | 6000-7000K | 175-210 | 80 |
| Item Code | Color | Max. IF (mA) |
VF (V) |
λd (nm) CCT (°K) |
Beam Angle (°) |
Lumen (lm) |
CRI |
|
RGBW
(10W) |
R | 1200 | 2.0-2.7 | 620-625nm | 120 | 80-110 | / |
| G | 1200 | 2.9-3.6 | 522-532nm | 140-195 | / | ||
| B | 1200 | 3.0-3.4 | 450-460nm | 30-45 | / | ||
| W | 1200 | 3.0-3.4 | 3780-4300K | 165-200 | 80 |
| Item Code | Color | Max. IF (mA) |
VF (V) |
λd (nm) CCT (°K) |
Beam Angle (°) |
Lumen (lm) |
CRI |
|
RGBW
(10W) |
R | 1200 | 2.0-2.7 | 620-625nm | 120 | 80-110 | / |
| G | 1200 | 2.9-3.6 | 522-532nm | 140-195 | / | ||
| B | 1200 | 3.0-3.4 | 450-460nm | 30-45 | / | ||
| W | 1200 | 3.0-3.4 | 2870-3130K | 155-200 | 80 |
| Item Code | Color | Max. IF (mA) |
VF (V) |
λd (nm) CCT (°K) |
Beam Angle (°) |
Lumen (lm) |
CRI |
|
RGBA
(10W) |
R | 1200 | 2.0-2.7 | 620-625nm | 120 | 80-110 | / |
| G | 1200 | 2.9-3.6 | 522-532nm | 140-195 | / | ||
| B | 1200 | 3.0-3.4 | 450-460nm | 30-45 | / | ||
| A | 1200 | 3.0-3.4 | 1750-1900K | 135-170 | / |

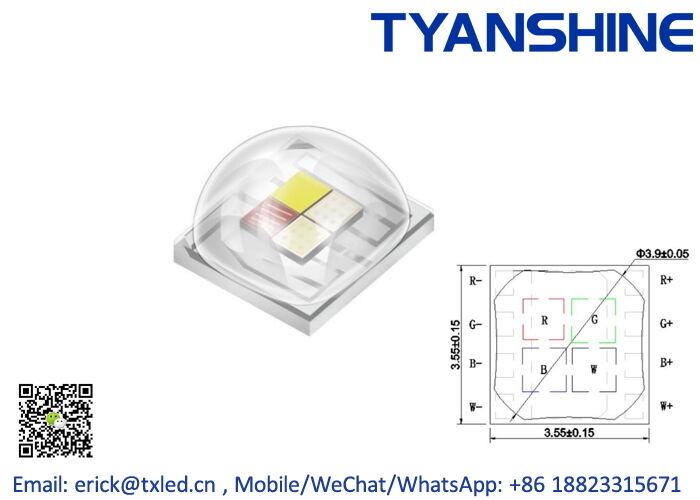

(10W Ceramic SMD3535 RGBW LEDs, Dome Lens
| Item Code | Color | Max. IF (mA) |
VF (V) |
λd (nm) CCT (°K) |
Beam Angle (°) |
Lumen (lm) |
CRI |
|
RGBW
(10W) |
R | 1200 | 2.1-2.6 | 620-625nm | 120 | 115-160 | / |
| G | 1200 | 2.8-3.4 | 522-532nm | 210-255 | / | ||
| B | 1200 | 2.9-3.5 |
450-460nm |
30-35 |
/ | ||
| 465-475nm | 50-75 | ||||||
| W | 1200 | 2.9-3.5 | 6000-7000K | 240-300 | / |
| Item Code | Color | Max. IF (mA) |
VF (V) |
λd (nm) CCT (°K) |
Beam Angle (°) |
Lumen (lm) |
CRI |
|
RGBW
(10W) |
R | 1200 | 2.1-2.6 | 620-625nm | 120 | 115-160 | / |
| G | 1200 | 2.8-3.4 | 522-532nm | 210-255 | / | ||
| B | 1200 | 2.9-3.5 |
450-460nm |
30-35 |
/ | ||
| 465-475nm | 50-75 | ||||||
| W | 1200 | 2.9-3.5 | 4800-5500K | 220-255 | 80 |
| Item Code | Color | Max. IF (mA) |
VF (V) |
λd (nm) CCT (°K) |
Beam Angle (°) |
Lumen (lm) |
CRI |
|
RGBW
(10W) |
R | 1200 | 2.1-2.6 | 620-625nm | 120 | 115-160 | / |
| G | 1200 | 2.8-3.4 | 522-532nm | 210-255 | / | ||
| B | 1200 | 2.9-3.5 | 450-460nm | 30-35 | / | ||
| 465-475nm | 50-75 | ||||||
| W | 1200 | 2.9-3.5 | 4000K±300k | 210-245 | 80 |
| Item Code | Color | Max. IF (mA) |
VF (V) |
λd (nm) CCT (°K) |
Beam Angle (°) |
Lumen (lm) |
CRI |
|
RGBW
(10W) |
R | 1200 | 2.1-2.6 | 620-625nm | 120 | 115-160 | / |
| G | 1200 | 2.8-3.4 | 522-532nm | 210-255 | / | ||
| B | 1200 | 2.9-3.5 | 450-460nm | 30-35 | / | ||
| 465-475nm | 50-75 | ||||||
| W | 1200 | 2.9-3.5 | 3000K±150k | 185-245 | 80 |
| Item Code | Color | Max. IF (mA) |
VF (V) |
λd (nm) CCT (°K) |
Beam Angle (°) |
Lumen (lm) |
CRI |
|
RGBL
(10W) |
R | 1200 | 2.1-2.6 | 620-625nm | 120 | 115-160 | / |
| G | 1200 | 2.8-3.4 | 522-532nm | 210-255 | / | ||
| B | 1200 | 2.9-3.5 | 450-460nm | 30-35 | / | ||
| 465-475nm | 50-75 | ||||||
| L | 1200 | 2.9-3.5 |
4030-4280K (565-5568nm) |
195-245 | / |
Appplications:
1, Outdoor Landscape illumination & Architectural lighting:
Luminaries such as Liner light, wall-washer, flood light, under-ground and under water light, etc.
2, Entertainment lighting/Stage lighting
Matrix panel lights, Moving Heads panels, Par cans lights...
Additional Services offered:
PCB design & making, LEDs soldering.
