30 Watt RGB LED Array Downlight Spotlight 700mA COB LEDs Chip RGBW Dimming

China 30 Watt RGB LED Array Downlight Spotlight 700mA COB LEDs Chip RGBW Dimming supplier
30 Watt RGB LED Array Downlight Spotlight 700mA COB LEDs Chip RGBW Dimming supplier 30 Watt RGB LED Array Downlight Spotlight 700mA COB LEDs Chip RGBW Dimming supplier

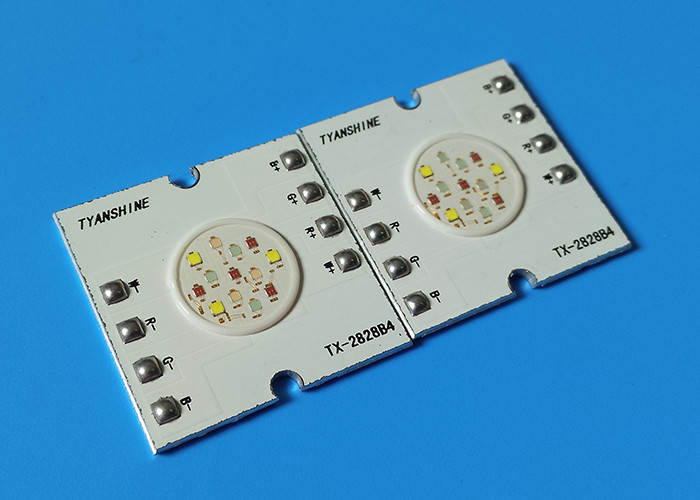

Large Image :  30 Watt RGB LED Array Downlight Spotlight 700mA COB LEDs Chip RGBW Dimming

Product Details:

Place of Origin: CN
Brand Name: TYANSHINE
Certification: ISO9001:2008 SGS RoHS
Model Number: TX-2828RGBW30D180-001

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: In Tray
Delivery Time: 5-10 days
Payment Terms: ExW,FOB,CIF
Supply Ability: 100, 000pcs/month
Contact Now
Detailed Product Description
Color-mixing: RGBW / RGB / RGBA Power: 30Watt
LES: Φ14.1mm Voltage: 9-12V
Current: 700mA Dimension: 28 *28 Mm
High Light:

rgb led chip

,

rgb power led

30 Watt RGB LED Array Downlight Spotlight 700mA COB LEDs Chip RGBW Dimming





Features:



  1. Completely mixing for any 2 colors, no light spot
  2. Interlaced & even light array distribution for 3 colors, pure and well-distributed light for each
  3. Adaptable for various angle of Lens and reflectors
  4. Variety of power selections for different applications
  5. Compact structure of light source, a simple shape for easy installation





Product Specifications:





Absolute Maximum Ratings at Ta=25℃

Parameter Symbol Value(Max.) Unit
LED Junction Temperature Tj 150
Power Dissipation Pd R 7700 mW
G 8400
B 8400
W 8400
Continuous Forward Current IF 700 mA
ElectrostaticDischarge Threshoid ESD 2000 V



Characteristics at If=600mA (Ta=25°C):

Parameter Symbol Emitting
Color
Values Units
Min. Typical Max.
Luminous Flux φV R 180 220 - lm
G 340 400 -
B 120 150 -
W 400 500 -
Forward Voltage Vf R 8 - 11 V
G 9 - 12
B 9 - 12
W 9 - 12
Dominant Wavelength λd R 620 625 630 nm
G 522 525 532
B 458 460 468
W 7000K 7500K 8000K

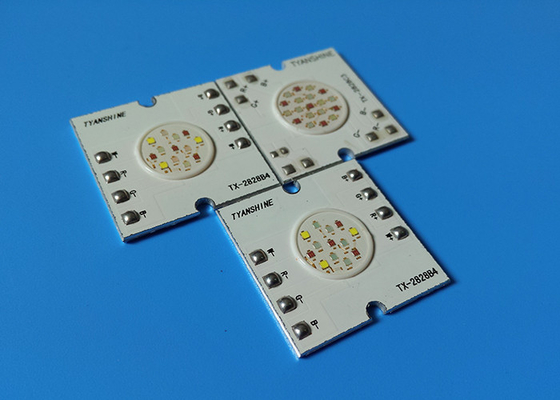

30 Watt RGB LED Array Downlight Spotlight 700mA COB LEDs Chip RGBW Dimming



Applications:



Entertainment lighting, Wall Washer, Matrix Panel lights

Commercial lighting

Landscape lighting

Decoration lighting





Package Mechanical Dimension:



30 Watt RGB LED Array Downlight Spotlight 700mA COB LEDs Chip RGBW Dimming
